Products Description
Model No.: JC40DB
Place Of Origin: China
Status: New
Warranty Period: 1.5 Years
Service System: Overseas Third-Party Support Available
Applicable Industry: Energy &Amp; Mining
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Russia, Uzbekistan, Thailand, Kyrgyzstan, Ukraine, India, Mexico, Pakistan, Indonesia, Saudi Arabia, Tajikistan, Bangladesh, Kazakhstan
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, Uzbekistan
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Motor
Warranty: 1 Year
Condition: New
Place Of Origin: Jiangsu, China
Applicable Industries: Energy & Mining
Material: Carbon Steel
Processing Type: Casting
Certification: Api
Application: Oil
Machine Type: Drilling Equipment
Brand Name: Yaou
Showroom Location: Egypt, Uae, Uzbekistan
Use: Drilling Rigs
Local Service Location: Egypt, Turkey, Germany, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Malaysia, Morocco, Kenya, Chile, Uae, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan
Type: Drilling Rig Equipment, Drilling Rig
Packaging: Standard export packing
Productivity: 10
Transportation: Ocean,Land,Air
Place of Origin: CHINA
Supply Ability: 10
Certificate: CE
HS Code: 8425399000
Port: SHANGHAI
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
- Selling Units:
- Set/Sets
- Package Type:
- Standard export packing
Product Description
JC40DB Draw works winch
Main Features
All bearings are roller bearing, all shaft material are alloy steel.
The chains adopt forced lubrication.
The drum is grooved. The high speed end and low speed end of drum adopt pneumatic tube clutch; the brake drum for band brake adopt forced water cooling; the brake disk for disk brake adopt forced water cooling or air cooling; the brake drum and brake disk are case-hardening treated with excellent wear-resistance capacity and long service life.
The tooth profile of sprocket are intermediate frequency hardening treated, all shifting clutch are clutch. with involute spline.
The main brake are band brake or hydraulic disk brake, the assistant brake are dynamic brake, eddy current brake or EATON brake…
SPECIFICATIONAS:
|
Model |
JC20DB |
JC30 |
JC30DB |
JC40 |
JC40D |
JC40DB |
|
Nominal drilling depth (5″DP) m |
2000 |
3000 |
3000 |
4000 |
4000 |
4000 |
|
Max. input power kW |
400 |
560 |
450 |
735 |
735 |
900 |
|
Max. fastline pull kN |
200 |
200 |
200 |
280 |
275 |
275 |
|
Nominal dia. of drill line mm |
19 |
29 |
29 |
32 |
32 |
32 |
|
Drum size (dia.×width) mm |
457×1000 |
508×1178 |
508×1182 |
640×1139 |
640×1139 |
640×1139 |
|
Sand drum size (dia.×width) mm |
||||||
|
accommodate capacity of sand drum m |
||||||
|
gears for hoisting speed |
2 |
4+2R |
1 |
4+2R |
2 |
1 |
|
gears for rotary speed |
1 |
1 |
1 |
1 |
||
|
Main brake |
band brake |
Hyd. disk brake |
band brake |
Hyd. disk brake PSZ65 |
Hyd. disk brake |
|
|
Hyd.disk brake |
Dynamic brake |
Hyd.disk brake |
Dynamic brake |
|||
|
Assistant brake |
– |
FDWS30 |
DWS40L |
DSF40D |
||
|
Control for speed and function |
AC VFD control, dynamic brake |
AC VFD control, dynamic brake |
AC VFD control, dynamic brake |
|||
|
Emergency brake and manual control |
Hyd. disk brake |
Hyd. disk brake |
Hyd. disk brake |
Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers.
Main products:
1. Drill Pipe, Heavy Drill Pipe, Square & Hexagonal Kelly
2. Drill Collar & Non-magnetic Drill Collar
3. Stabilizers, Reamer, Hole Opener, Casing Scraper, etc
4. Kelly Valve, Safety valve, Check Valve , and float valve
5. Hydraulic or Mechanical Drilling Jar, and Absorber
6. Fishing tools (Bowen serials), including overshot, spear, etc
7. Junk Mill, Casing Cutter, Safety Joint, etc
8. Hydraulic Bucking unit, Screw up and breakout Unit, Down hole motor tester, Jar tester, etc.
9 .Down hole motor
10. Processing Machinery: shears, bending machines, hydraulic presses, bending machines, etc.
11. Various coal mine winches, oil field winches, ship winches, etc.
12. Various hand tools and electric tools.
Packaging & Shipping
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
FAQ
Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?
Tags:
Technical parameter

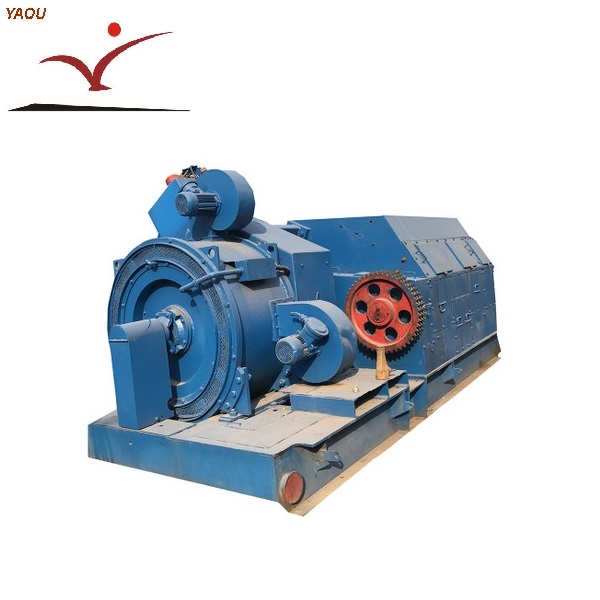

JC40DB Draw works winch Oil rig equipment 1

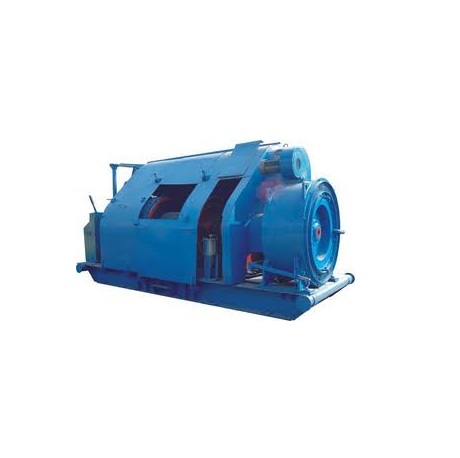

JC40DB Draw works winch Oil rig equipment 2

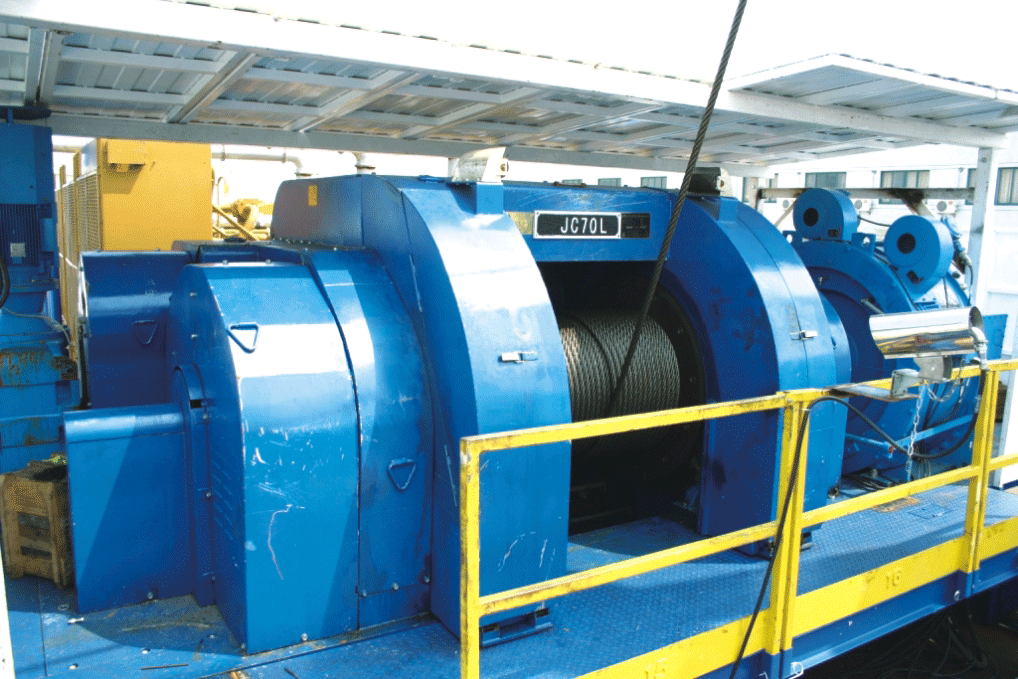

JC40DB Draw works winch Oil rig equipment 3

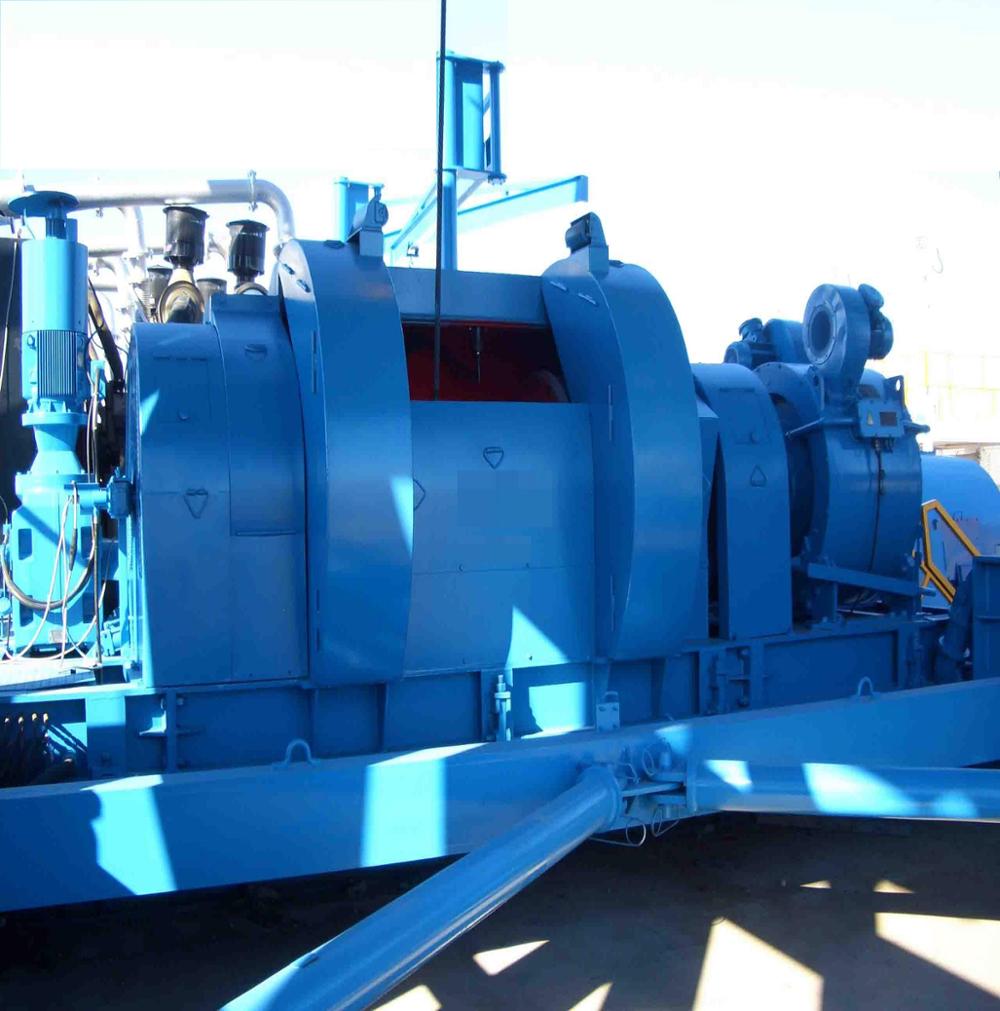

JC40DB Draw works winch Oil rig equipment 4

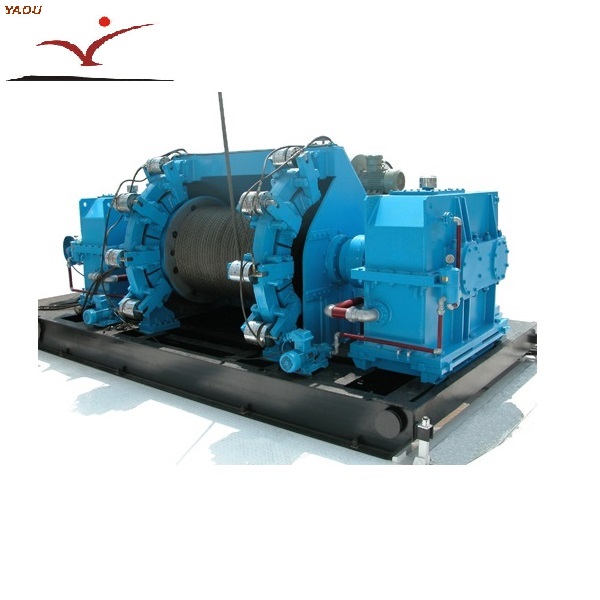

JC40DB Draw works winch Oil rig equipment 5
