Products Description
Model No.: HWS-20
Brand Name: Yaou
Model Number: Hws20-500
Power Source: Electric
Capacity: 60-7500kn
Warranty Period: 3 Years
Certification: Gs
Power: 1400w
Support Customization: Oem
Place Of Origin: Jiangsu, China
Application: Mine Winch
Packaging: Standard export packing
Productivity: 10
Transportation: Ocean,Land,Air
Place of Origin: CHINA
Supply Ability: 10 Set/Sets per Month
Certificate: CE
HS Code: 8425399000
Port: Shanghai China
Payment Type: L/C,D/A,D/P,T/T,Western Union,Paypal
Incoterm: FOB,CFR,CIF,EXW
- Selling Units:
- Set/Sets
- Package Type:
- Standard export packing

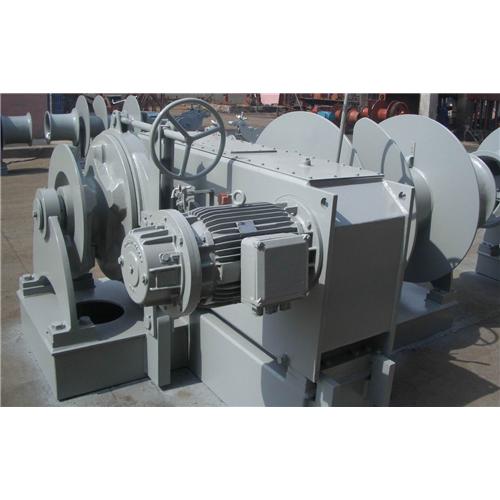

Electric mooring winch is widely used in the place with heavy work and big traction.the motor of the single drum winch drive the drum by reducer box,the brake is installed between the motor and input shaft. electric mooring winch could be set up to single drum, double drum and multiple drum for adapting the needs of hoisting, traction and rotary work. Normally,winch with the rated load less than 10ton could be set up to electric mooring winch.

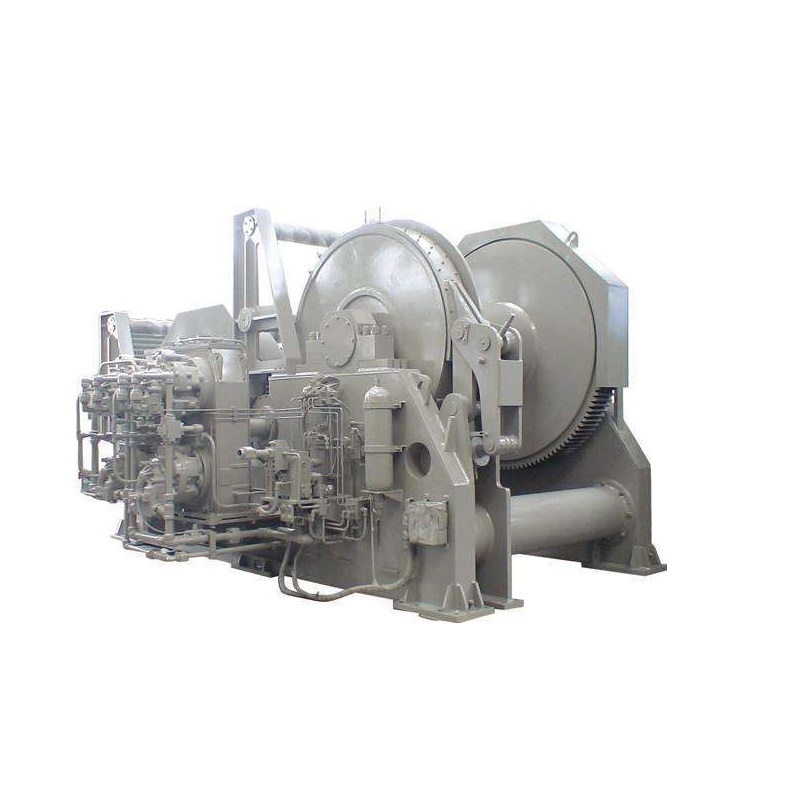

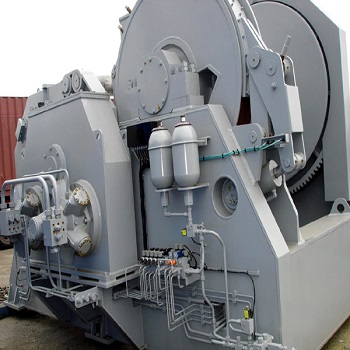

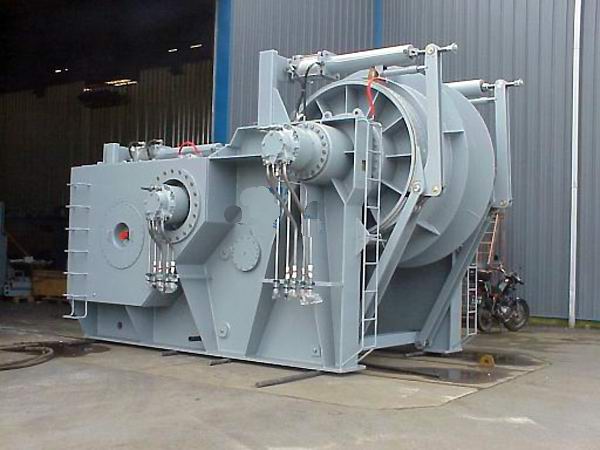

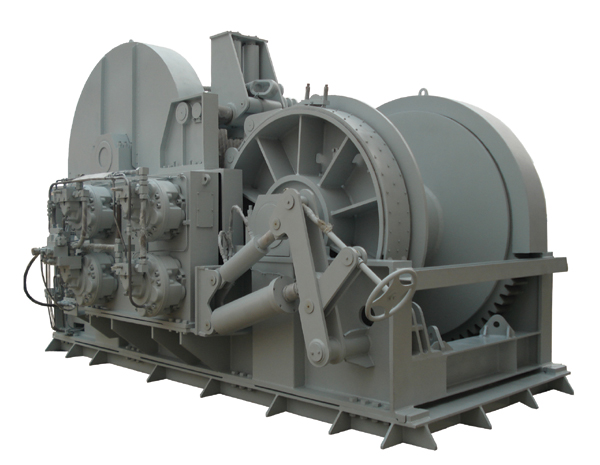

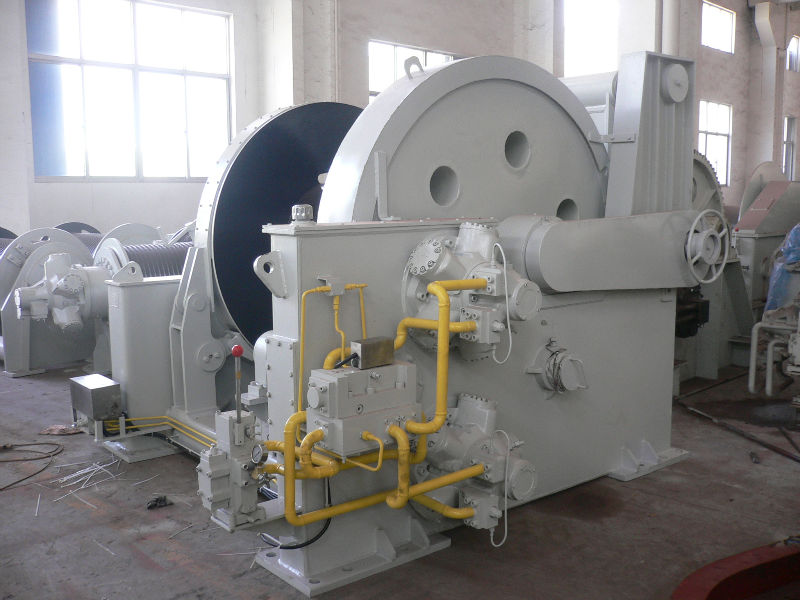

Hydraulic mooring winch is the winch with the rated load from 10T~5000T, hydraulic motor have high mechancial efficiency and large torque, can drive different distributor as per different working conditions. this kind of winches have following features:compact structure,small size,light,nice appearance,safty,high efficiency,large torque,good stability,low noise,reliable operation and soon.
|
Series
|
Rated pull
(kn) |
Rated speed
(m/min) |
Drum capacity
(φmmxm) |
Braking force
(kn) |
Motor power
(kw) |
Dimensions(mm)
|
Weight
(ton) |
||
|
Length
|
Width
|
Height
|
|||||||
|
HWS-20
|
20
|
12
|
15×200
|
60
|
11
|
1800
|
1150
|
1825
|
25
|
|
HWS-30
|
30
|
12
|
16×200
|
90
|
15
|
1950
|
1200
|
1900
|
3
|
|
HWS-50
|
50
|
12
|
22×220
|
150
|
22
|
2050
|
1200
|
2000
|
3.5
|
|
HWS-80
|
80
|
12
|
28×220
|
240
|
37
|
2175
|
1250
|
2100
|
4
|
|
HWS-100
|
100
|
12
|
30×220
|
300
|
45
|
2320
|
1285
|
2175
|
5
|
|
HWS-125
|
125
|
12
|
32×220
|
375
|
55
|
2385
|
1325
|
2250
|
5.5
|
|
HWS-150
|
150
|
12
|
36×220
|
450
|
75
|
2500
|
1465
|
2400
|
6
|
|
HWS-200
|
200
|
10
|
39.5×350
|
600
|
75
|
2600
|
1670
|
2625
|
9
|
|
HWS-250
|
250
|
10
|
43×450
|
750
|
90
|
2850
|
1800
|
2900
|
12.5
|
|
HWS-320
|
320
|
8
|
47×550
|
960
|
90
|
3050
|
1975
|
3100
|
18
|
|
HWS-400
|
400
|
8
|
52×600
|
1000
|
110
|
3375
|
2050
|
3400
|
22
|
|
HWS-500
|
500
|
9
|
56×600
|
7500
|
180
|
|
|
|
|

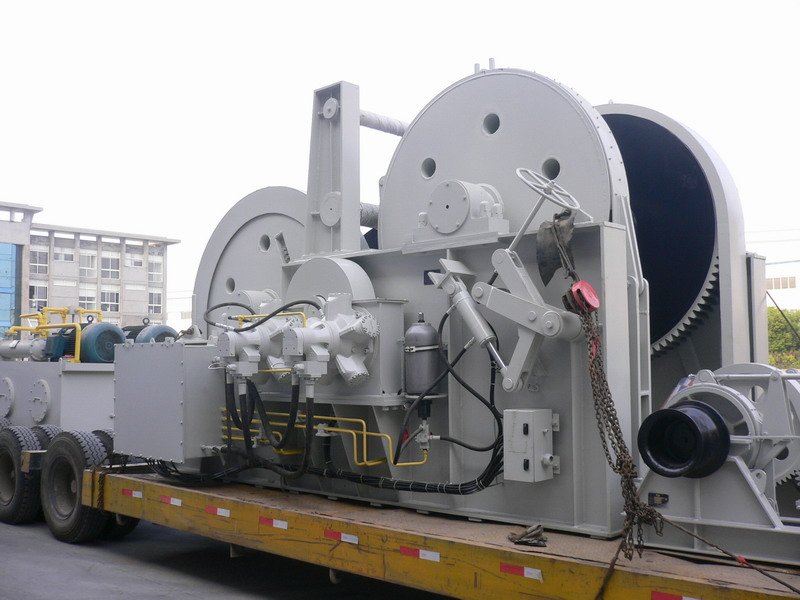

Transportation is based on customers in different regions using steam, rail, road and air transportation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers.
Main products:
1. Drill Pipe, Heavy Drill Pipe, Square & Hexagonal Kelly
2. Drill Collar & Non-magnetic Drill Collar
3. Stabilizers, Reamer, Hole Opener, Casing Scraper, etc
4. Kelly Valve, Safety valve, Check Valve , and float valve
5. Hydraulic or Mechanical Drilling Jar, and Absorber
6. Fishing tools (Bowen serials), including overshot, spear, etc
7. Junk Mill, Casing Cutter, Safety Joint, etc
8. Hydraulic Bucking unit, Screw up and breakout Unit, Down hole motor tester, Jar tester, etc.
9 .Down hole motor
10. Processing Machinery: shears, bending machines, hydraulic presses, bending machines, etc.
11. Various coal mine winches, oil field winches, ship winches, etc.
12. Various hand tools and electric tools.
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?
Rugao Yaou Import & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. Our company also operates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Tags:
Technical parameter

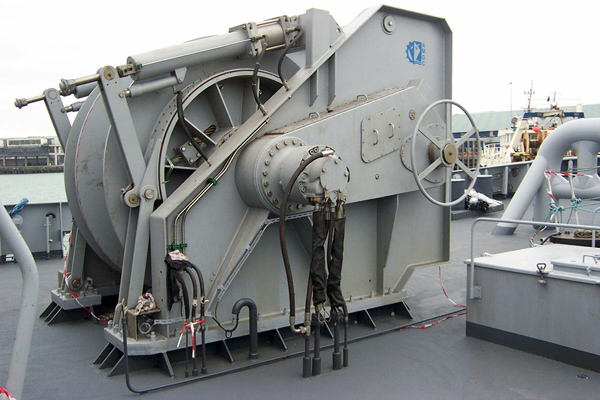

20ton double drum mooring winch, Boat winch 1

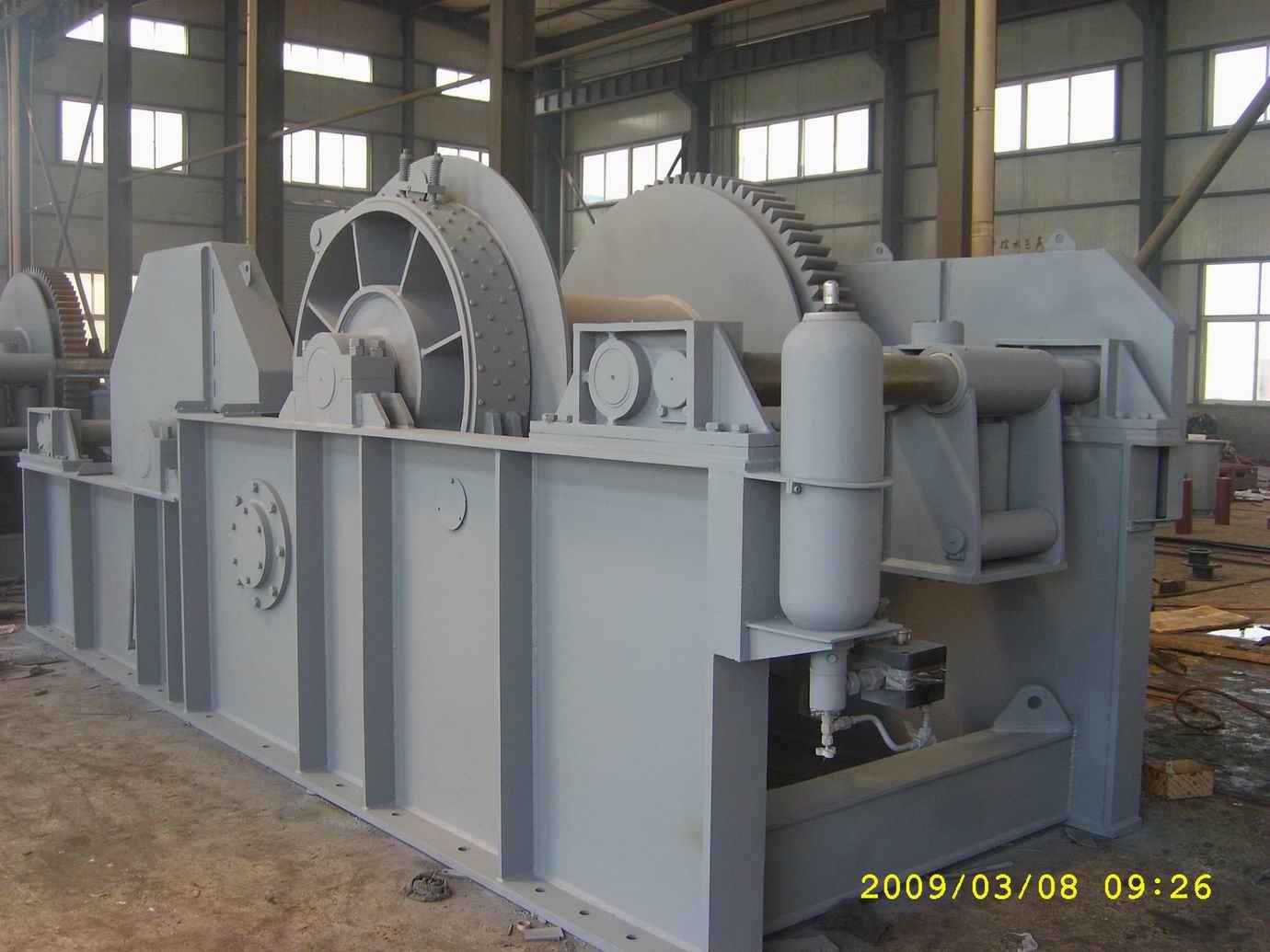

20ton double drum mooring winch, Boat winch 2
