Products Description
Model No.: QJ5/120(B)-F
Brand: YAOU
Warranty Period: 3 Years
Certification: Gs, Gs
Place Of Origin: Jiangsu, China
Customized Support: Oem, Odm, Obm
Brand Name: Yaou
Power Source: Air Winches
Application: Oil Drilling Rig
Capacity: 5-50kn
Model Number: Qj5/120(B)-F
Power: 710w
Support Customization: Oem
Place Of Origin: China
Power Source: Hydraulic, Pneumatic
Application: Auto
Voltage: 12v
Warranty: 3 Years
Packaging: Tin packaging
Productivity: 50
Transportation: Ocean,Land,Air,Express
Place of Origin: CHINA
Supply Ability: 50
Certificate: ISO
HS Code: 8425399000
Port: SHANGHAI
Payment Type: L/C,T/T,Western Union,Money Gram
Incoterm: FOB,CFR,CIF,EXW
- Selling Units:
- Set/Sets
- Single package size:
- 130cm*94cm*98.5cm
- Single gross weight:
- 580kg
- Package Type:
- Tin packaging
- Picture Example:
-

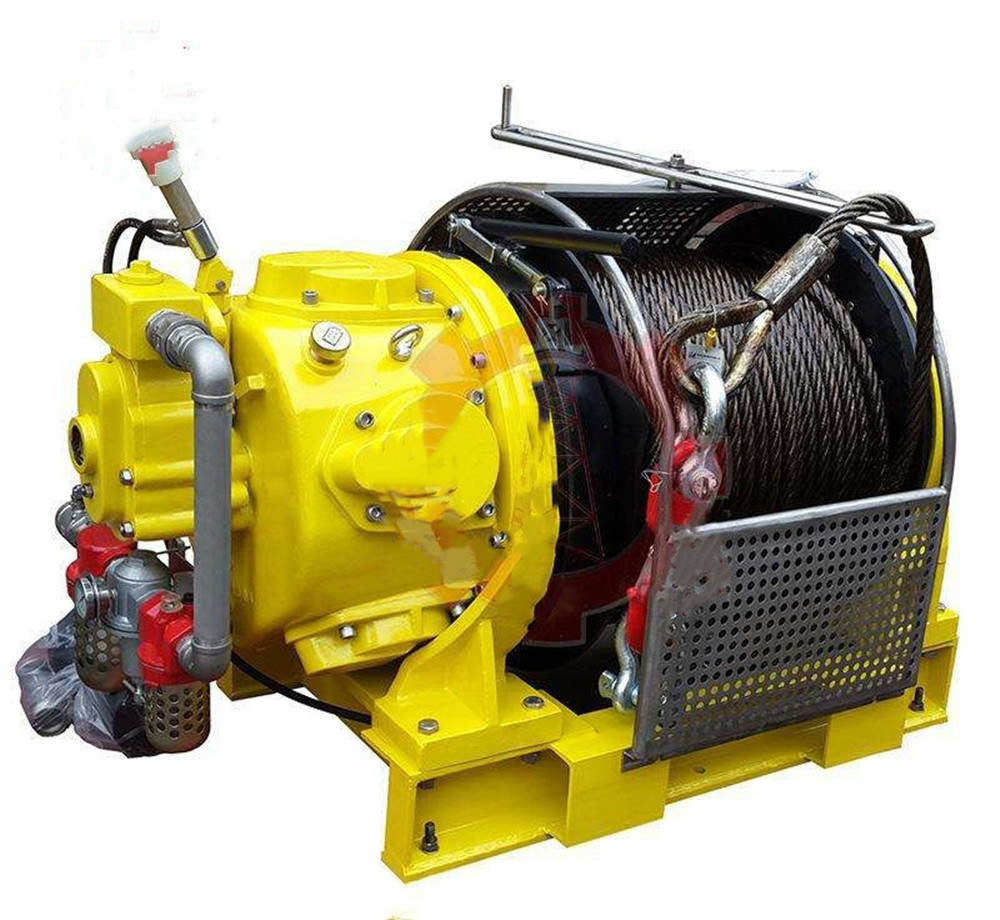

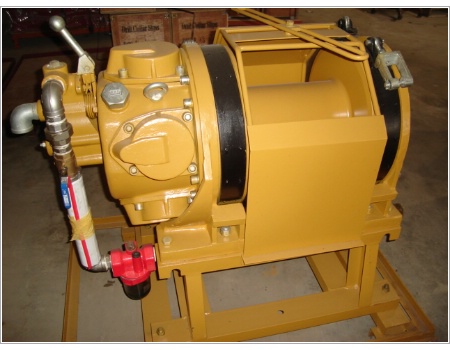

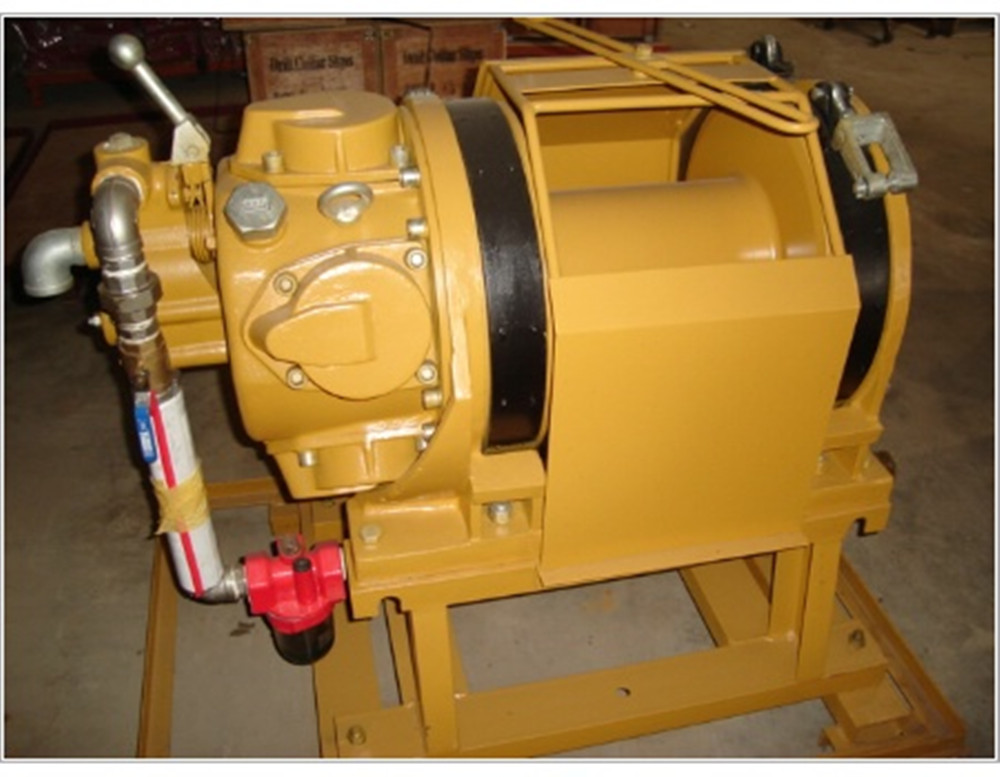

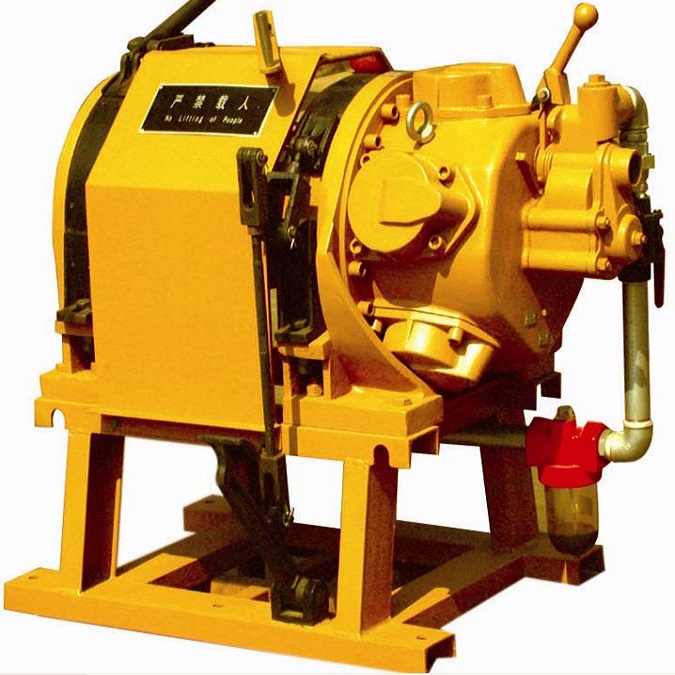

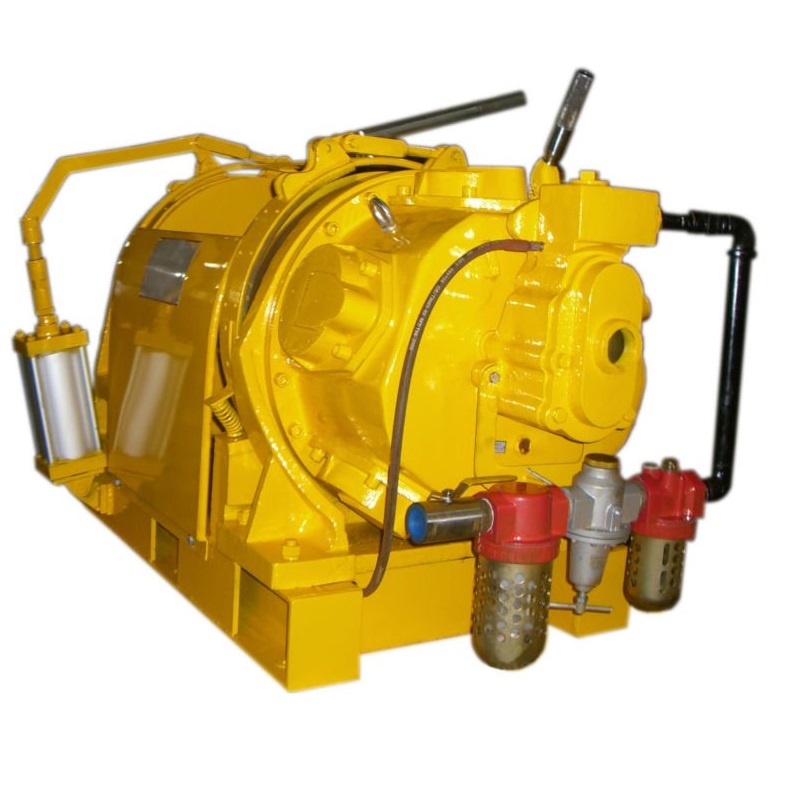

QJ series of air winches are powered by piston-type air motor. They have the advantages of compact structure, light weight, safe and easy to operate and they are used for general lifting, hauling and other works in mines, oil fields, on shipboards and etc. They are designed and manufactured according to API Spec 7K “Specification for Drilling Equipment”.
|
Model |
QJL0.5/40(A) |
QJ0.5/120(A) |
QJ1/120(A) |
QJ3/200(B) |
QJ5/120(B) |
|
|
Air Pressure |
MPa |
0.5-0.9 |
||||
|
psi |
72-130 |
|||||
|
Max. Pull |
kN |
5 |
5 |
10 |
30 |
50 |
|
US ton |
0.55 |
0.55 |
1.1 |
3.3 |
5.5 |
|
|
Max. Line Speed |
m/min |
12 |
12 |
24 |
20 |
35 |
|
ft/min |
39.3 |
39.3 |
78.7 |
65.6 |
114.8 |
|
|
Rope Storage |
m |
40 |
120 |
120 |
200 |
120 |
|
ft |
131 |
393 |
328 |
656 |
230 |
|
|
Wire Rope Diameter |
mm |
8 |
8 |
11 |
15.875 |
15.875 |
|
in |
5- |
5–16 |
7–16 |
5–8 |
5-8 |
|
|
Size |
mm |
495*365*380 |
675*343*460 |
825*343*450 |
1340*940*985 |
1300*940*985 |
|
in |
19.5*14.3*15 |
27*13.5*18 |
32.5*13.5*18 |
53*37*39 |
51*37*39 |
|
|
Weight |
Kg |
45 |
117 |
162 |
600 |
580 |
|
lb |
100 |
258 |
358 |
1320 |
1280 |
|
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Our company mainly deals in Hardware Tools, combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.
FAQ
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
