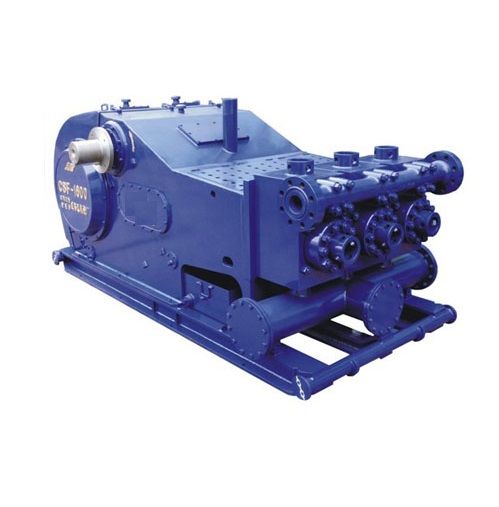

PZ Series MUD PUMP Oilfield equipment

Description

Argument

Products Description

Overview

Product Attributes

Model No.: PZ-Series MUD PUMP

Brand Name: Rs

Condition: New

Warranty: 1 Year

Applicable Industries: Energy & Mining

Local Service Location: Indonesia, Pakistan, India, Russia, Uae, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan

Showroom Location: Uae, Uzbekistan

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

Warranty Of Core Components: 1 Year

Core Components: Pump

Type: Mud Pump

Model Number: Pz-11

After-sales Service Provided: Video Technical Support, Online Support

Usage: Oil

Pressure: Low Pressure

Fuel: Diesel

Standard Or Nonstandard: Standard

Power: Electric

Application: Cryogenic

Theory: Reciprocating Pump

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Energy &Amp; Mining

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Russia, India, Pakistan, Indonesia, Sri Lanka, Turkey, Australia, Bangladesh, South Africa, Kazakhstan, Uzbekistan, Viet Nam

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, Uzbekistan

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Core Component Warranty Period: 1 Year

Supply Ability & Additional Information

Packaging: standard packages

Productivity: 10

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 5

Certificate: API

HS Code: 8431431000

Port: SHANGHAI

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: standard packages

Products Description

* Nodular iron power frame, eccentric, connection rods, and crossheads
* Double-row-spherical roller bearnings carry eccentric
* Double extended Jackshaft carried on heavy-duty straight roller bearings
* Dual roller bearing connecting rod
* Heat-treated alloy steel main gears are bolted to the eccentric
* Replaceable bronze crosshead slides
* Full splash lubrication, with oil Pump to feed working parts
* Heat-treated alloy steel, interchangeable fluid cyclinders
* Three-rib API-7 urethane insert valves and seats
* Replaceable-type element oil filter and oil pressure gauge
* Threaded valve covers
* Plated piston rods
* Complete piston washing and lubrication system
* The monoblock forging of hollow sphere for the pulsation damperer is first made in China.

Specifications	Maximum Input	Maximum RPM	Stroke Length	Rod Load	Pump Weight	Gear Ratio
PAH 275	275 BHP (205 kw)	175 RPM	8" (203 mm)	22,030 lbs. (9,990 kg)	9,810 lbs. (4,450 kg)	4.7:1
PZG (PZ-7)	550 BHP (410 kw)	145 RPM	7" (178 mm)	64,400 lbs. (29,211 kg)	16,765 lbs. (7,620 kg)	4.625:1
PZH (PZ-8)	750 BHP (559 kw)	145 RPM	8" (203 mm)	76,800 lbs. (34,836 kg)	17,400 lbs. (7,900 kg)	4.5:1
PZJ (PZ-9)	1000BHP (746 kw)	130 RPM	9" (229 mm)	101,550 lbs. (36,062 kg)	28,425 lbs. (12,890 kg)	4.48:1
PZK (PZ-10)	1,350BHP (1,007 kw)	115 RPM	10" (254 mm)	139,800 lbs. (63,276 kg)	37,000 lbs. (16,815 kg)	4.38:1
PZL (PZ-11)	1,600BHP (1,193 kw)	115 RPM	11" (279 mm)	150,300 lbs. (68,175 kg)	37,000 lbs. (16,815 kg)	4.38:1

Model	Piston Cylinder		Displacement			Maximum PSI	Pump RPM	Jackshaft RPM	Input HP Maximum Speed
Model	Diameter		Per Revolution		Per Minute	Maximum PSI	Pump RPM	Jackshaft RPM	Input HP Maximum Speed
PAHD (plunger) PAHC (piston	Inch	mm	Gal.	Lit.	Gal.	Lit	PSI	Kg/sq.c	175	823	275
	5*	127	2.04	7.72	357	1,351	1,122	79
	4.5	114	1.65	6.25	289	1,094	1,386	97
	4	102	1.31	4.96	228	863	1,753	123
	3.5	89	1.00	3.79	175	662	2,290	161
	3.25	83	.862	3.26	151	572	2,657	187
	3	76	.734	2.79	128	485	3,118	219
PZG (PZ-7)	7	178	3.5	13.25	507	1,919	1,673	118	145	670	550
	6.5	165	3.02	11.43	437	1,654	1,940	136
	6.25	152	2.78	10.55	404	1,530	1,100	148
	6	152	2.57	9.73	373	1,412	2,277	160
	5.5	140	2.16	8.18	313	1,185	2,710	191
	5	127	1.78	6.74	259	980	3,279	231
	4.5	114	1.45	5.49	210	795	4,048	285
	4	102	1.14	4.32	166	628	5,000	352
PZH (PZ-8)	7	178	4.00	15.14	580	2,196	1,996	140	145	652	750
	6.5	165	3.45	13.06	500	1,893	2,315	163
	6.25	159	3.19	12.08	462	1,749	2,504	176
	6	152	2.94	11.13	426	1,613	2,717	191
	5.5	140	2.47	9.35	358	1,355	3,233	227
	5	127	2.04	7.72	296	1,120	3,912	285
	4.5	114	1.65	6.25	240	908	4,830	340
	4	102	1.31	4.96	189	715	5,000	352
PZJ (PZ-9)	7	178	4.50	17.03	585	2,214	2,639	186	130	582	1,000
	6.5	165	3.88	14.69	504	1,908	3,060	215
	6.25	159	3.59	13.59	466	1,764	3,310	233
	6	152	3.30	12.49	430	1,628	3,592	253
	5.5	140	2.78	10.52	361	1,367	4,274	301
	5	127	2.29	8.67	298	1,128	5,000	352
	4.5	114	1.86	7.04	242	916	5,000	352
	4	102	1.47	5.56	191	725	5,000	352
PZK (PZ-10)	7	178	5	18.93	575	2,177	3,624	355	115	504	1,350
	6.5	165	4.31	16.32	496	1,878	4,203	295
	6	152	3.67	13.89	422	1,597	4,933	347
	5.5	140	3.09	11.7	355	1,344	5,000	352
PZL(PZ-10) 5,000 PSI Fluid Cylinder	7	178	5.5	20.82	632	2,392	3,905	275	115	504	1,600
	6.5	165	4.74	17.94	545	2,063	4,529	318
	6	152	4.04	15.29	465	1,760	5,000	352
	5.5	140	3.40	12.87	390	1,476	5,000	352
PZL(PZ-10) 7,500 PSI Fluid Cylinder	7	178	5.5	20.82	632	2,392	3,905	275	115	504	1,600
	6.5	165	4.74	17.94	545	2,063	4,529	318
	6	152	4.04	15.29	465	1,760	5,000	352
	5.5	140	3.40	12.87	390	1,476	5,000	352
	5	127	2.8	10.60	323	1,223	7,500	527

Mud Pump 79

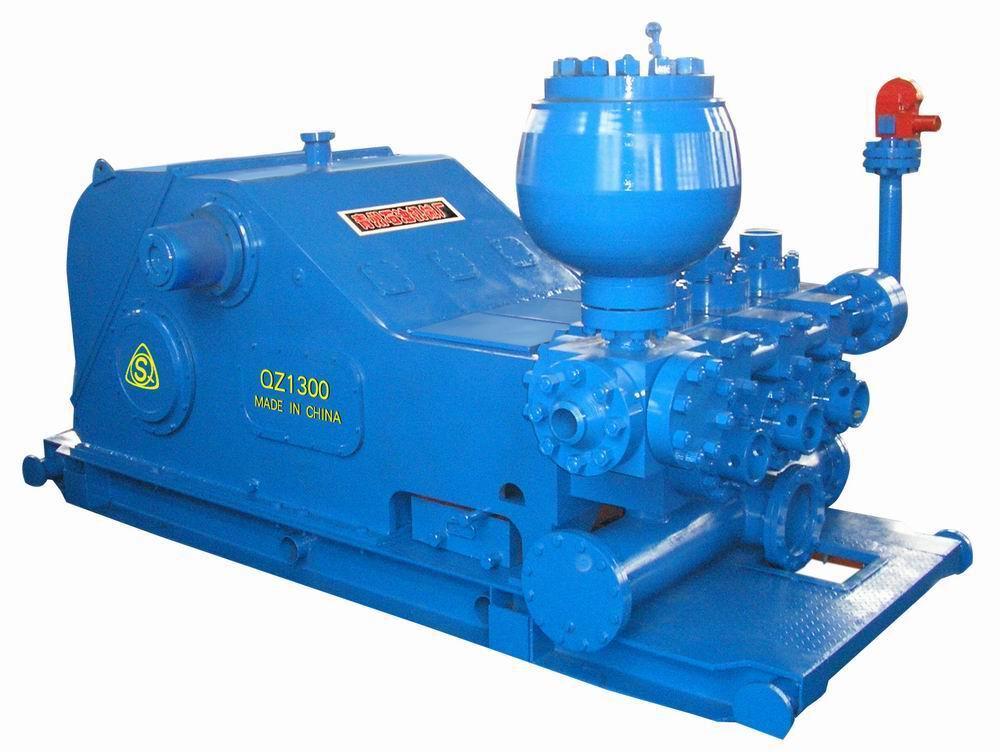

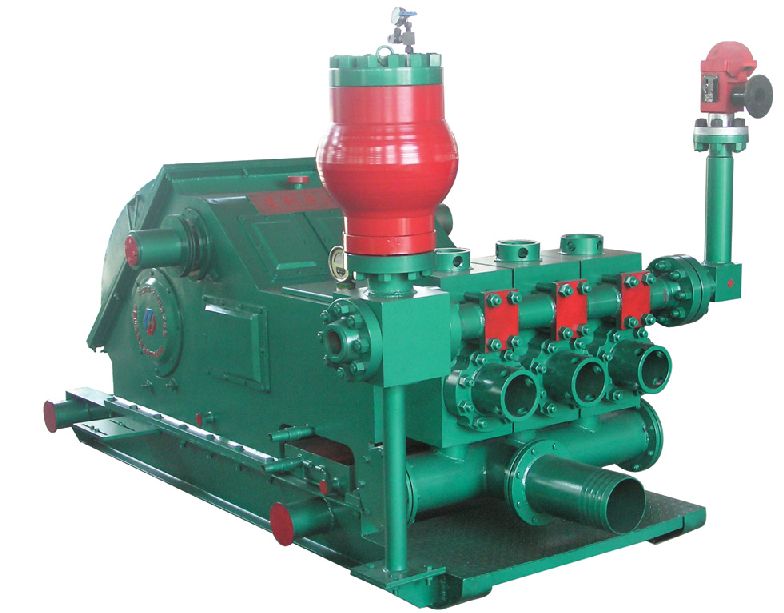

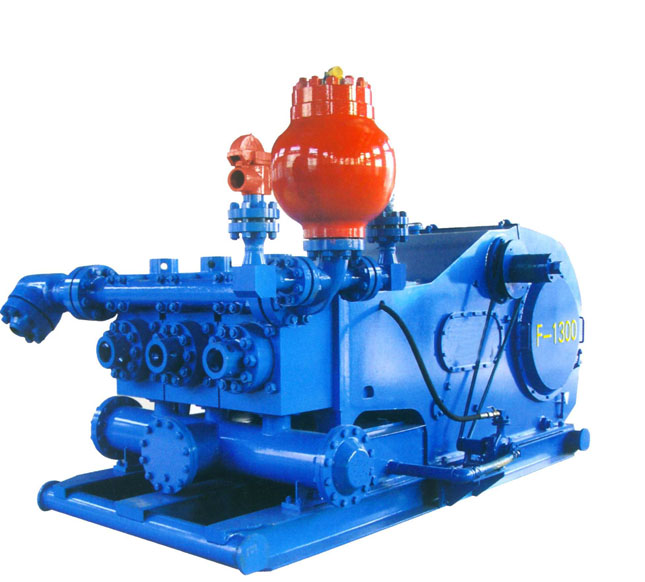

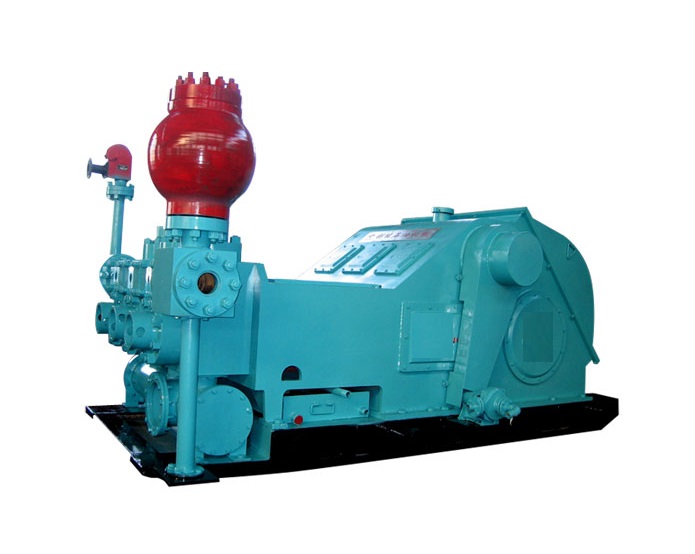

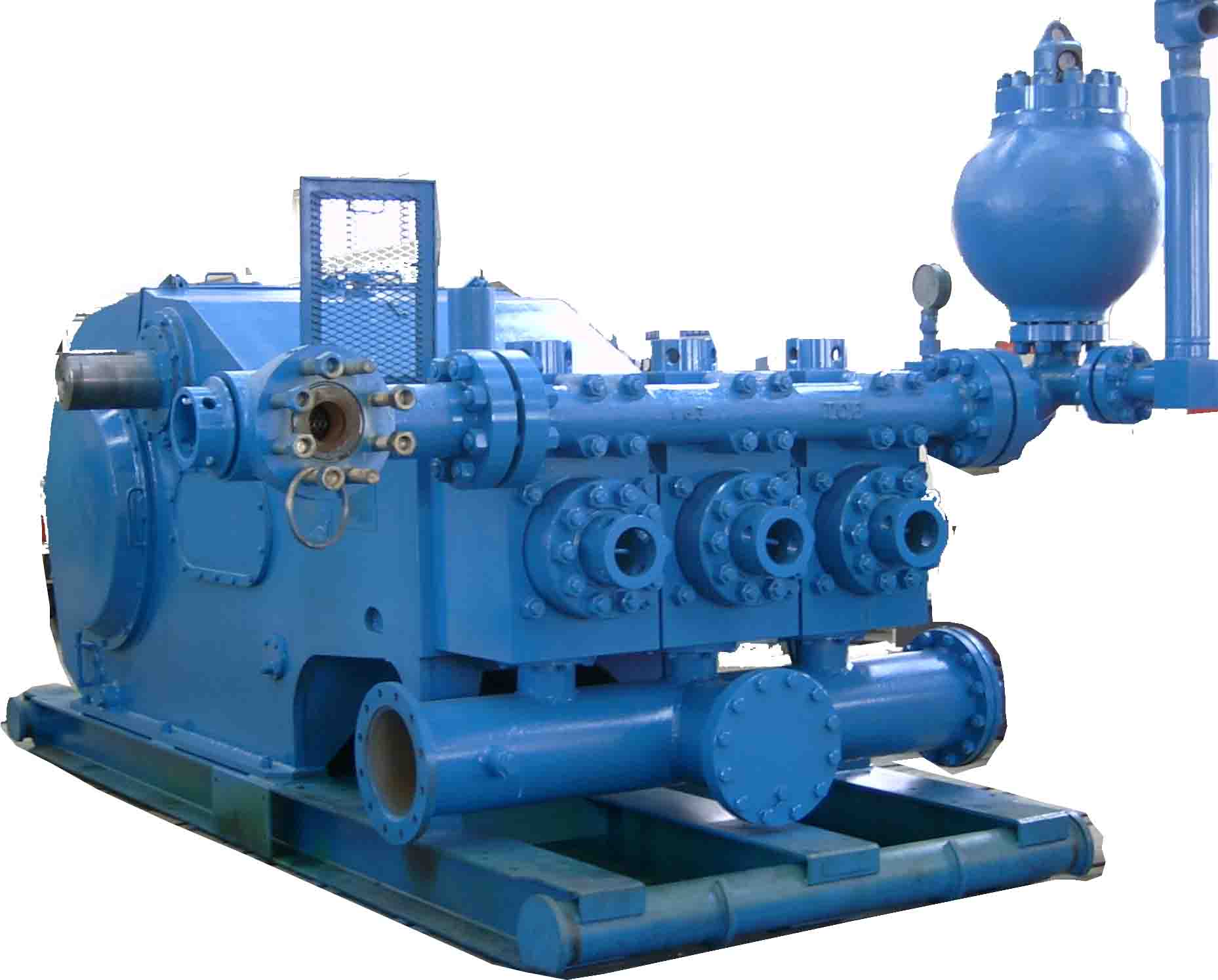

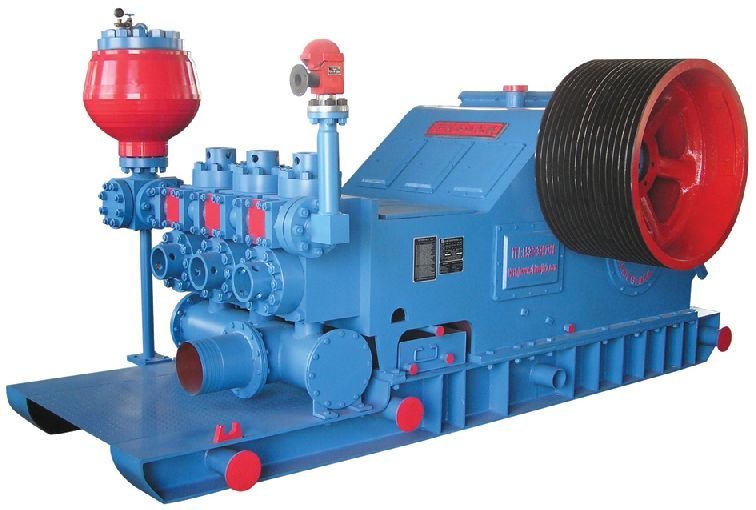

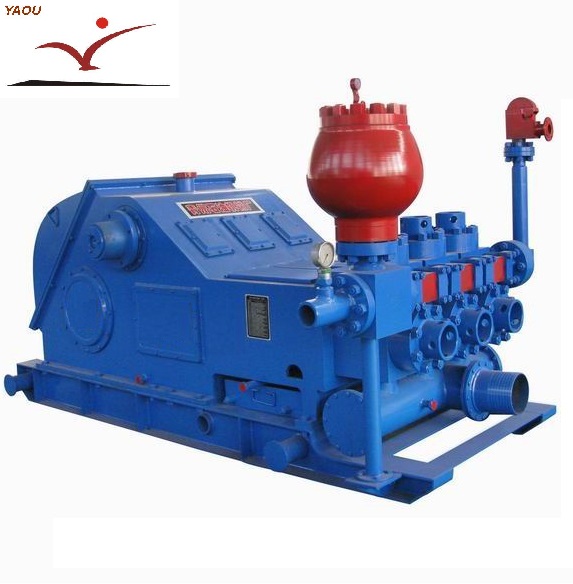

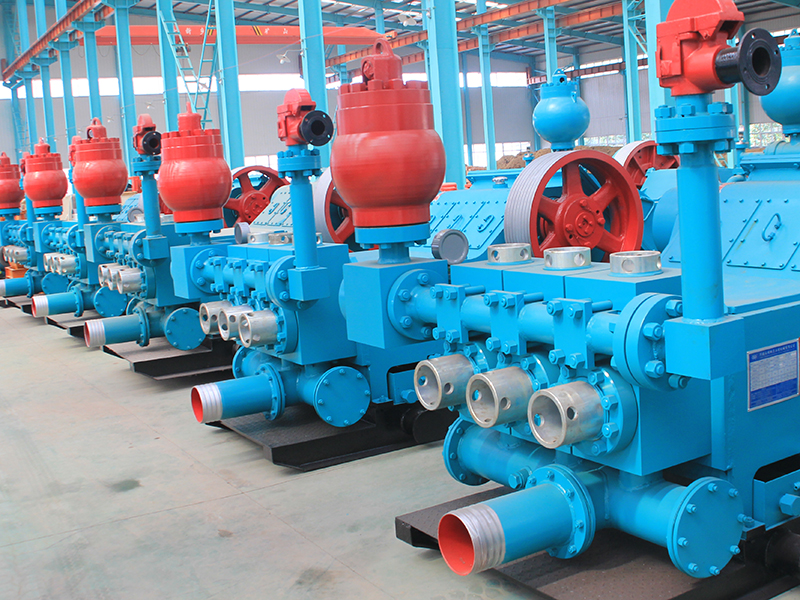

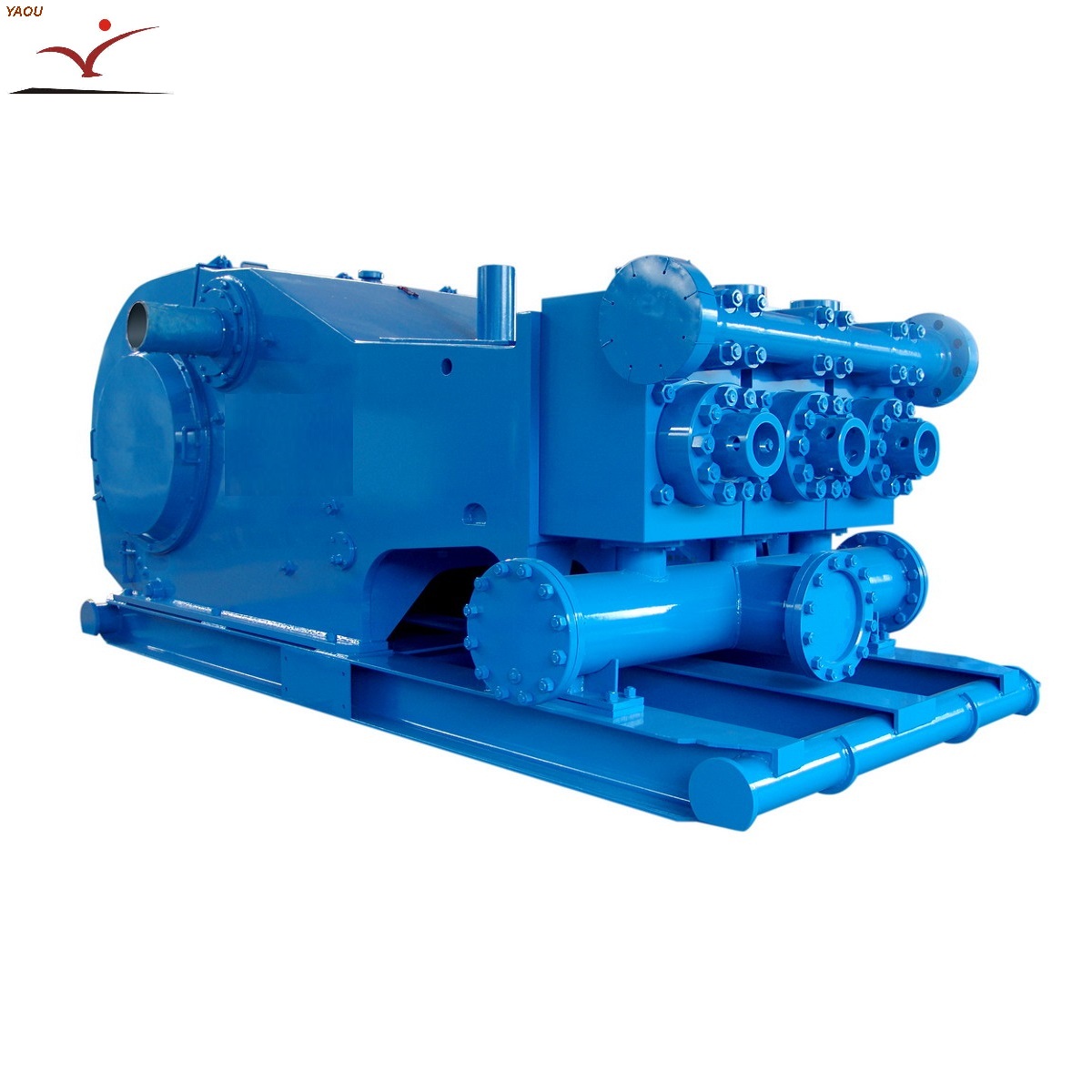

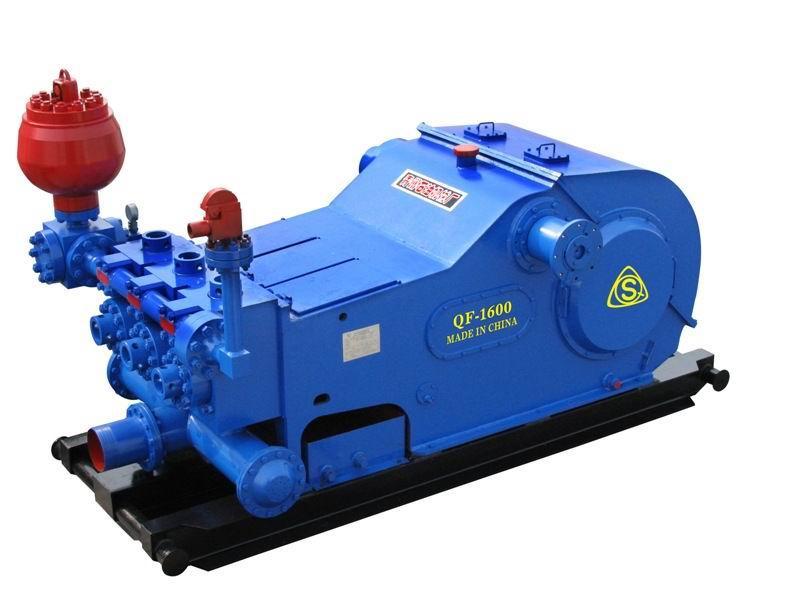

Details Images

Product packaging

According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
