mechanical seals,Water pump,Centrifugal pump

Description

Argument

Products Description

Overview

Product Attributes

Model No.: mechanical seals

Brand: YAOU

Brand Name: Cn

Model Number: Oil Seal

Standard Or Nonstandard: Standard

Type: Labyrinth Seals

Pressure: ≤1.0mpa For Centrifugal Pump O-Ring

Material: Stainless Steel

Temperature: -30°f ~+400°f [-34°c~200°c]

Applications: Pump Bearing Housing,

Main Spare Parts: Pump Casing, Impeller, Shaft, Wear

Spring And Metal Parts: F,G,M

Size: 16-120

Place Of Origin: Jiangsu, China

Supply Ability & Additional Information

Packaging: 10 sets/box

Productivity: 100

Transportation: Ocean,Land,Air,Express

Place of Origin: CHINA

Supply Ability: 100

Certificate: ISO

Port: SHANGHAI

Payment Type: L/C,T/T,D/P

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: 10 sets/box

Picture Example:

Product Description

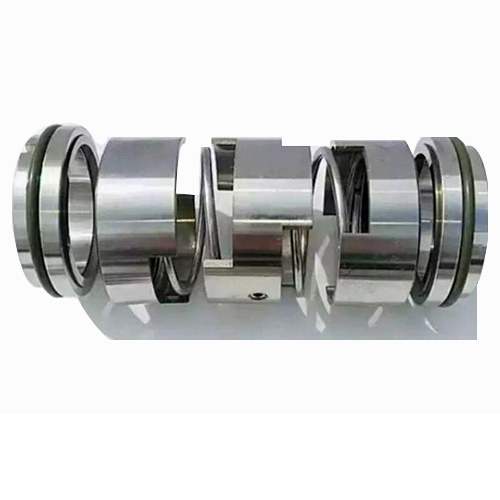

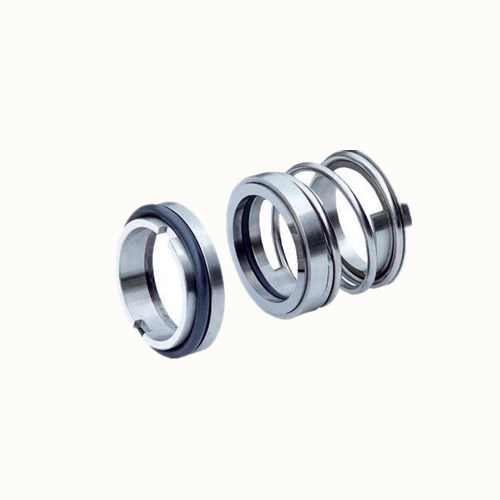

1. Pump mechanical seal
2. Our seals can replace the original seals.
3.If it is not the one you need ,you can pass us your drawing ,material,shaft size for quotation.
4.Customized products and OEM is welcomed
5. We provide Factory Price,High Quality ,Fast Delivery and Best Sevice.

Performance Capabilities	Sizes	Materials Combination
Temperature: -20°C to 180°C, dependent on the elastomer	18mm to 100mm	Face: Carbon, SiC, TC
Pressure: Up to 10 bar		Seat: Ceramic, SiC, TC
Speed: Up to 10m/s		Bellow: NBR, EPDM, VIT, Aflas, FEP, FFKM
End play/axial float allowance ±0.1mm		Spring: SS304, SS316, hastelloy C
End play/axial float allowance ±0.1mm		Metal parts: SS304, SS316

1. Built-in single-end single-spring unbalanced and coil spring transmission mechanical seal
2. Built-in single-end single-spring balance type and coil spring transmission mechanical seal
3. Built-in single-end multi-spring unbalanced screw drive
4. Built-in single-end single-spring balance type sleeve transmission
5. Built-in single-end multi-spring unbalanced screw drive
6. Built-in single-end multi-spring balanced screw drive
7. Outer balance single end single spring over balance type fork drive

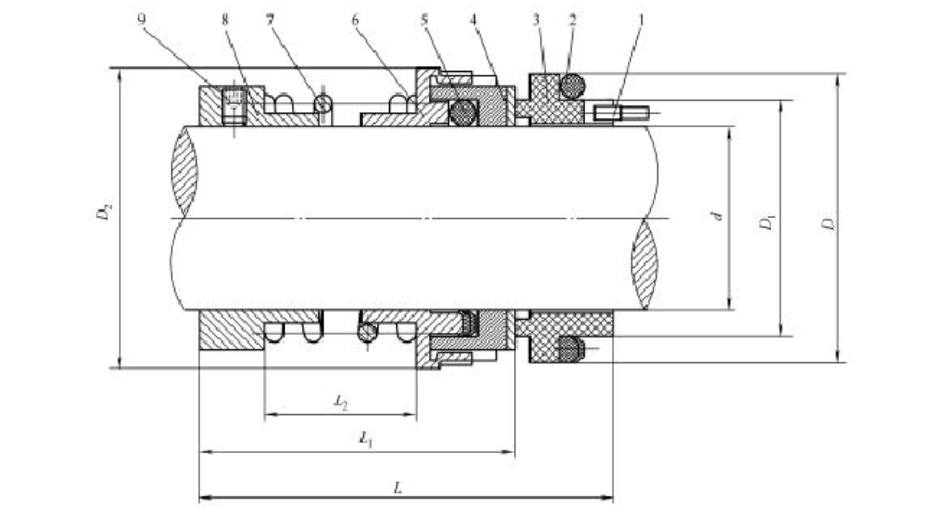

103 Machinery Seal

103mechanical seal
							Unit: mm
specification	d	D2	D1	D	L	L1	L2
16	16	33	25	33	56	40	12
18	18	35	28	36	60	44	16
20	20	37	30	40	63	44	16
22	22	39	32	42	67	48	20
25	25	42	35	45	67	48	20
28	28	45	38	48	69	50	22
30	30	52	40	50	75	56	22
35	35	57	45	55	79	60	26
40	40	62	50	60	83	64	30
45	45	67	55	65	90	71	36
50	50	72	60	70	94	75	40
55	55	77	65	75	96	77	42
60	60	82	70	80	96	77	42
65	65	92	80	90	111	89	50
70	70	97	85	97	116	91	52
75	75	102	90	102	116	91	52
80	80	107	95	107	123	98	59
80	85	112	100	112	125	100	59
90	90	117	105	117	126	101	60
95	95	122	110	122	126	101	60
100	100	127	115	127	126	101	60
110	110	141	130	142	153	126	80
120	120	151	140	152	153	126	80

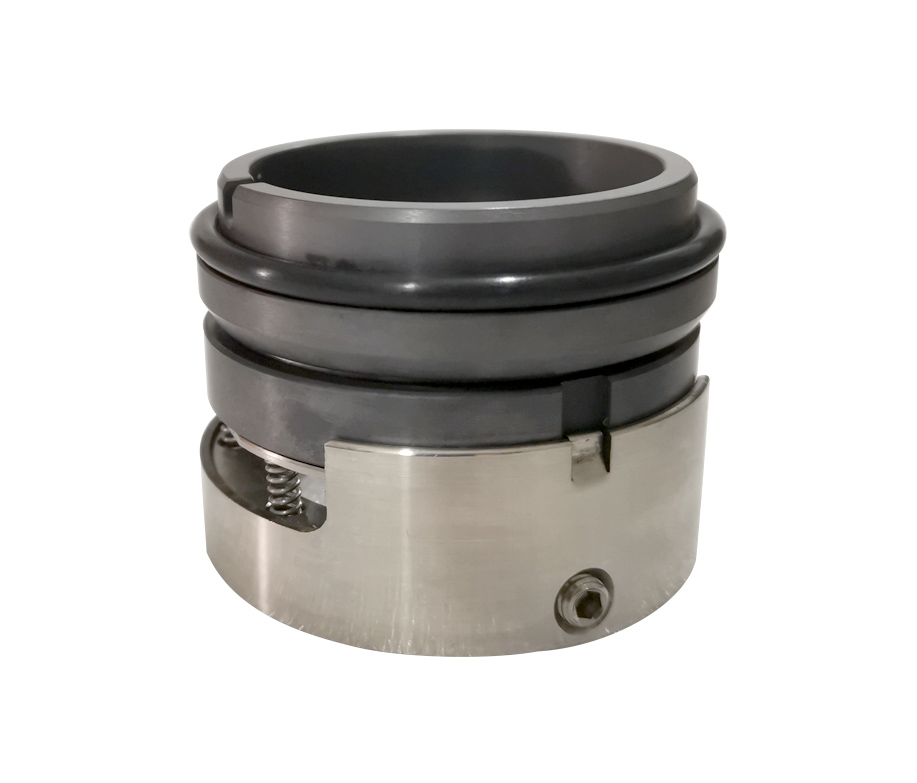

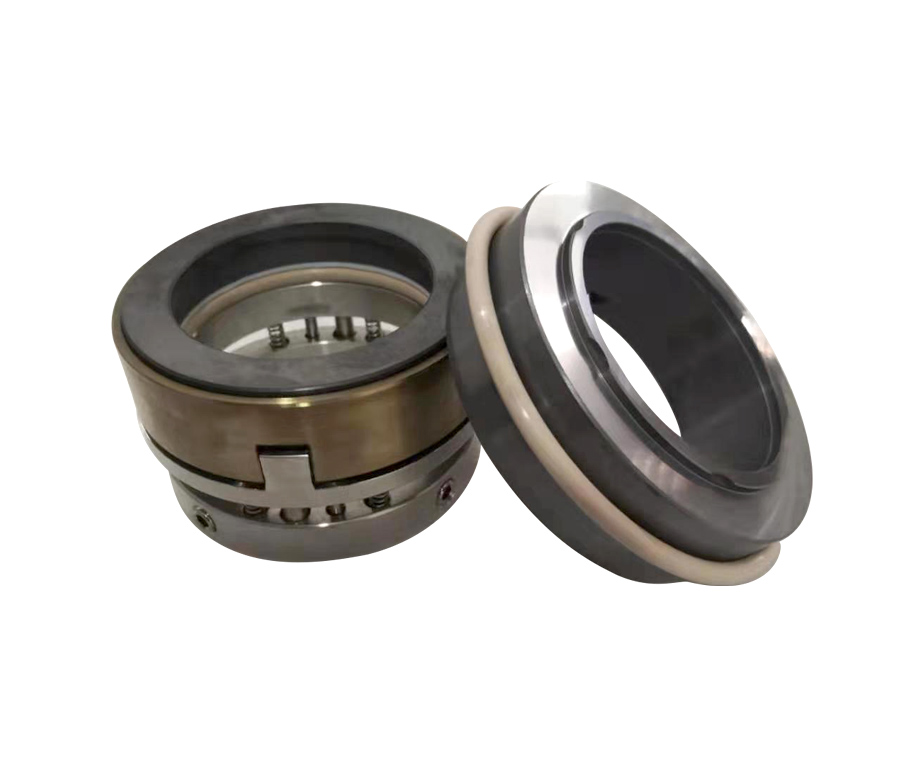

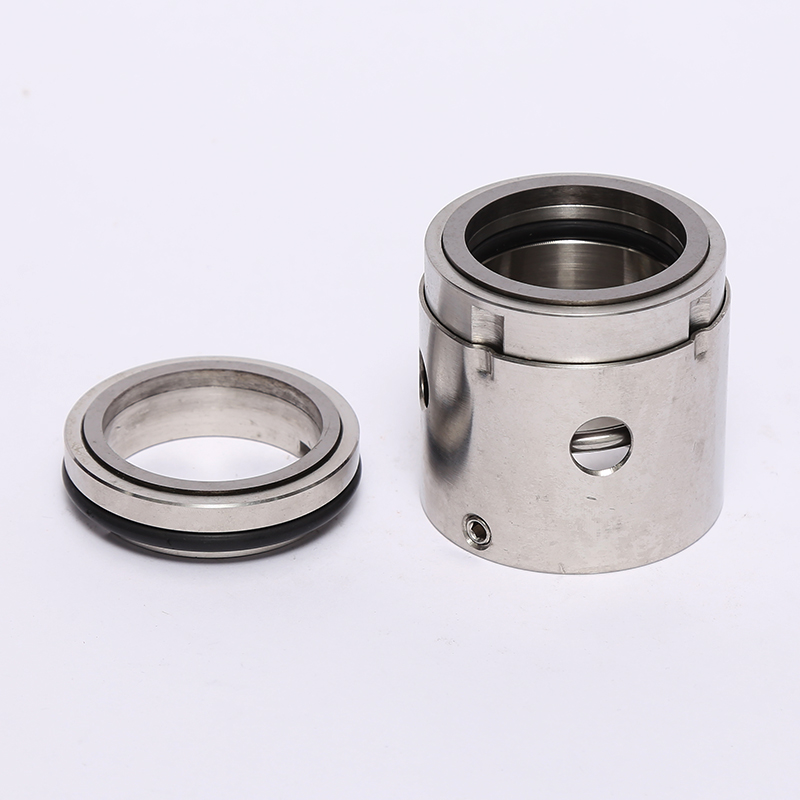

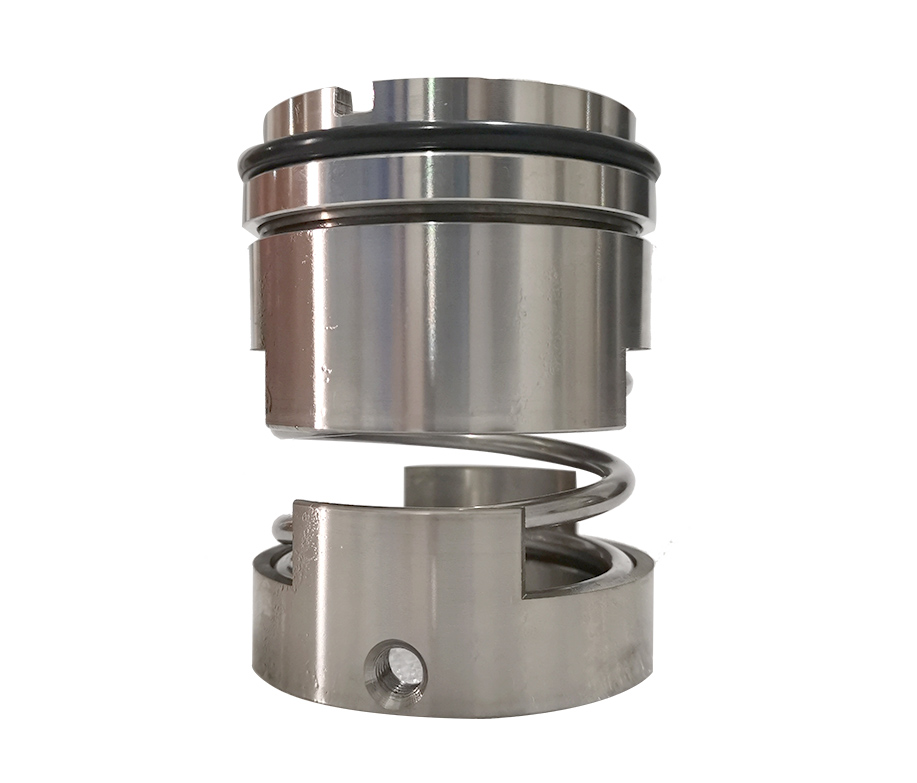

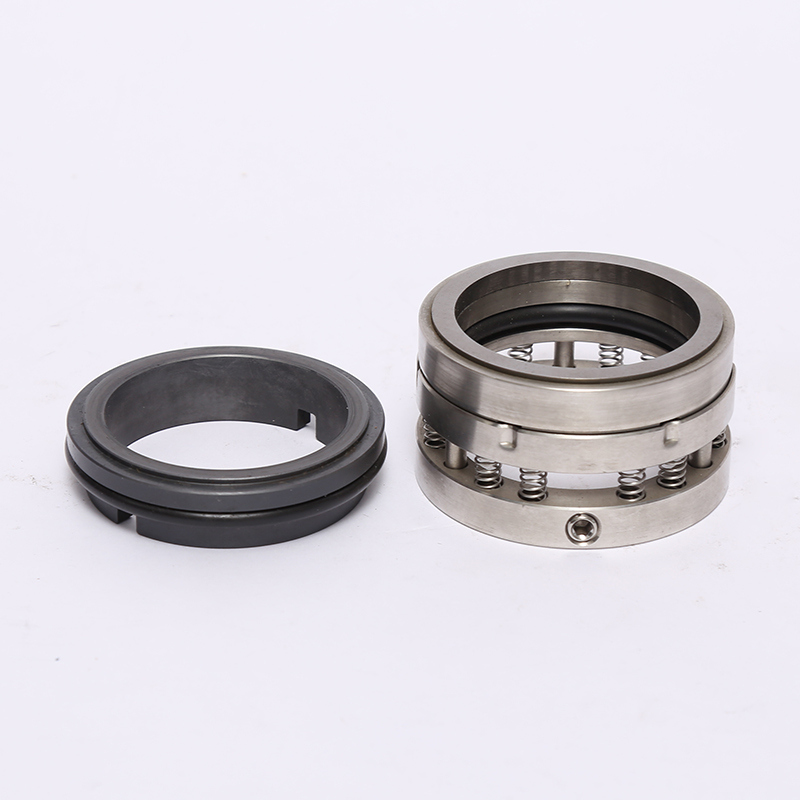

Product Shows

Rm1001 1 104 04

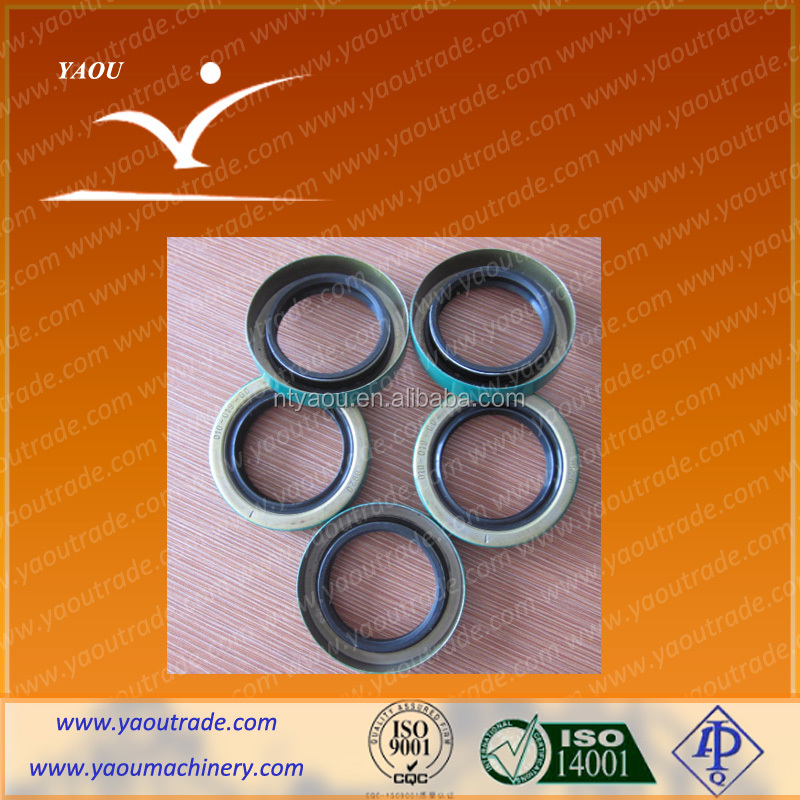

Isolator Labyrinth Oil Seal Roller Bearing Oil Seal Related products

Company Information

Packaging & Shipping

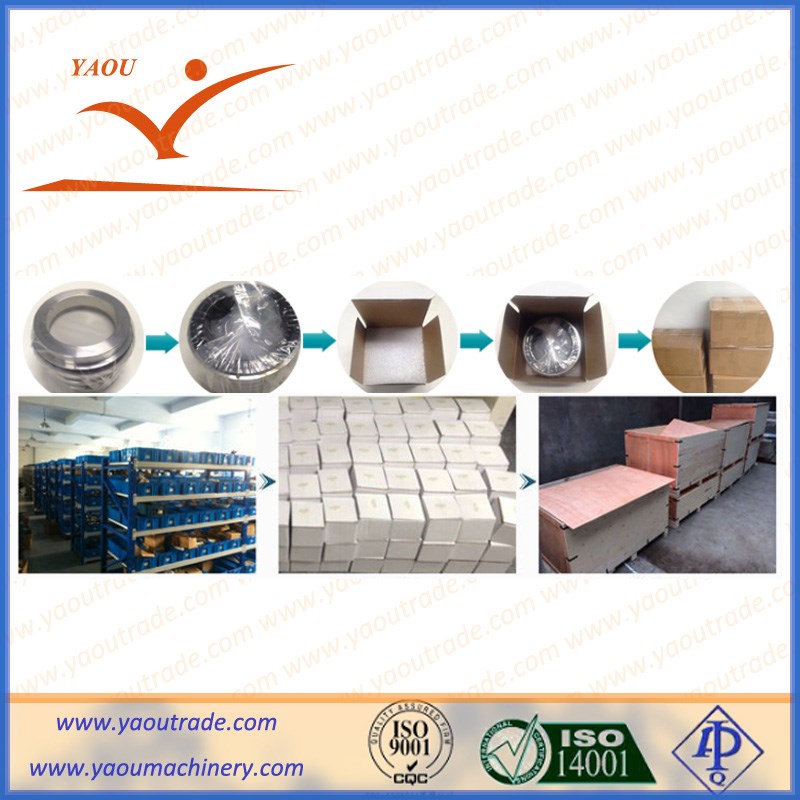

According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.

Transportation is based on customers in different regions using steam, rail, road and air transportation.

Cooperation Process

Quality Assuarance

Our company mainly deals in Hardware Tools, Combination Tools, electric tools, special oil tools, Metal Processing Machinery and Oil Drilling Equipment. ALAZ diagonal cutting, oil drill pipe, Drilling Tools, Diesel Engine and other hardware tools have established long-term and stable cooperation with many retailers.

Main products:

1. Drill pipe, heavy drill pipe, kelly and hexagonal drill pipe

2. Drill Collars and non-magnetic drill collars

3. Stabilizer, reamer, hole opener, casing scraper, etc.

4. Kelly valve, safety valve, Check Valve and floating valve

5. Hydraulic or mechanical drilling tank, absorbent

6. Fishing tools (Bowen series), including overheat, spear, etc.

7. Garbage crusher, shell cutter, safety joint, etc.

8. Hydraulic unit, disorder and fracture unit, downhole motor tester, bottle tester, etc.

9. Orifice motor

10. Mechanical processing: scissors, Bending Machine, hydraulic machine, bending machine, etc.

11. Various mine winches, oilfield winches, marine winches, etc.

12. Various hand tools and electric tools.
