Products Description
Model No.: 3NB
Brand: YAOU
Status: New
Warranty Period: 1.5 Years
Applicable Industry: Energy &Amp; Mining
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Uzbekistan, Russia, India, Pakistan, Indonesia, Saudi Arabia, Tajikistan, Bangladesh, Kazakhstan, Kyrgyzstan
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uzbekistan, Uae
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Pump
Warranty: 1 Year
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Material: Stainless Steel
Marketing Type: New Product 2020
Place Of Origin: Jiangsu, China
Applicable Industries: Energy & Mining
Standard Or Nonstandard: Standard
Power: Electric
Pressure: Low Pressure
Processing Type: Casting
Fuel: Diesel
Certification: Api
Showroom Location: Uae
Machine Type: Drilling Equipment
Use: Well Drilling
Usage: Oil
Application: Cryogenic
Type: Drilling Rig
Local Service Location: Egypt, Uae, Uzbekistan
Theory: Reciprocating Pump
Packaging: Packaging meet export requirements
Productivity: 5
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 5
HS Code: 8413400000
Port: SHANGHAI
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
- Selling Units:
- Set/Sets
- Package Type:
- Packaging meet export requirements

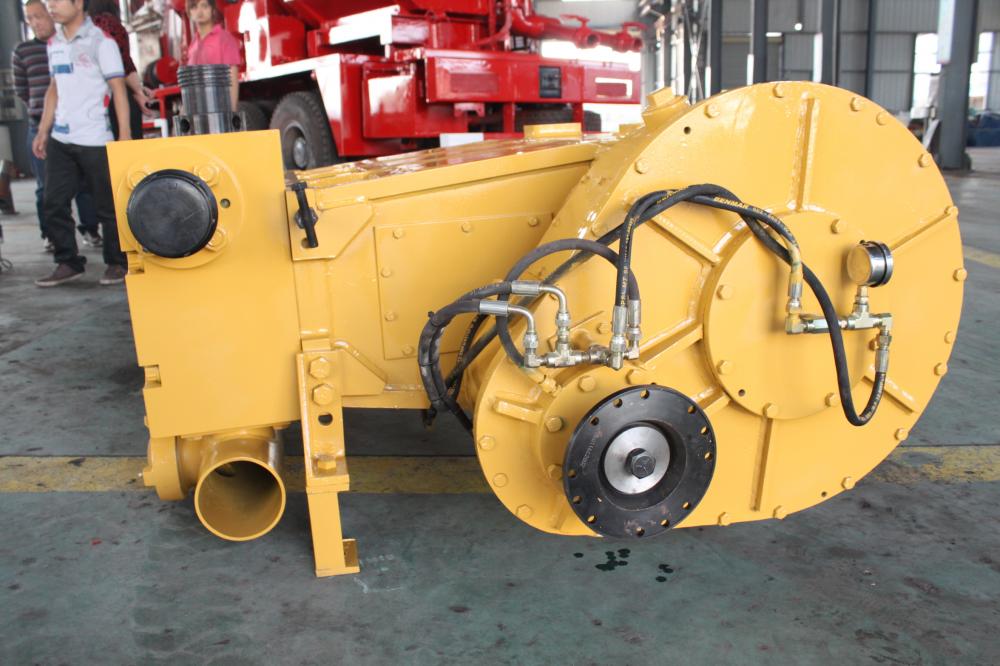

Power end
1. The frame is a welded structure with steel plate, high strength, rigidity and light weight.
2. Adopting herringbone gear drive, running smoothly.

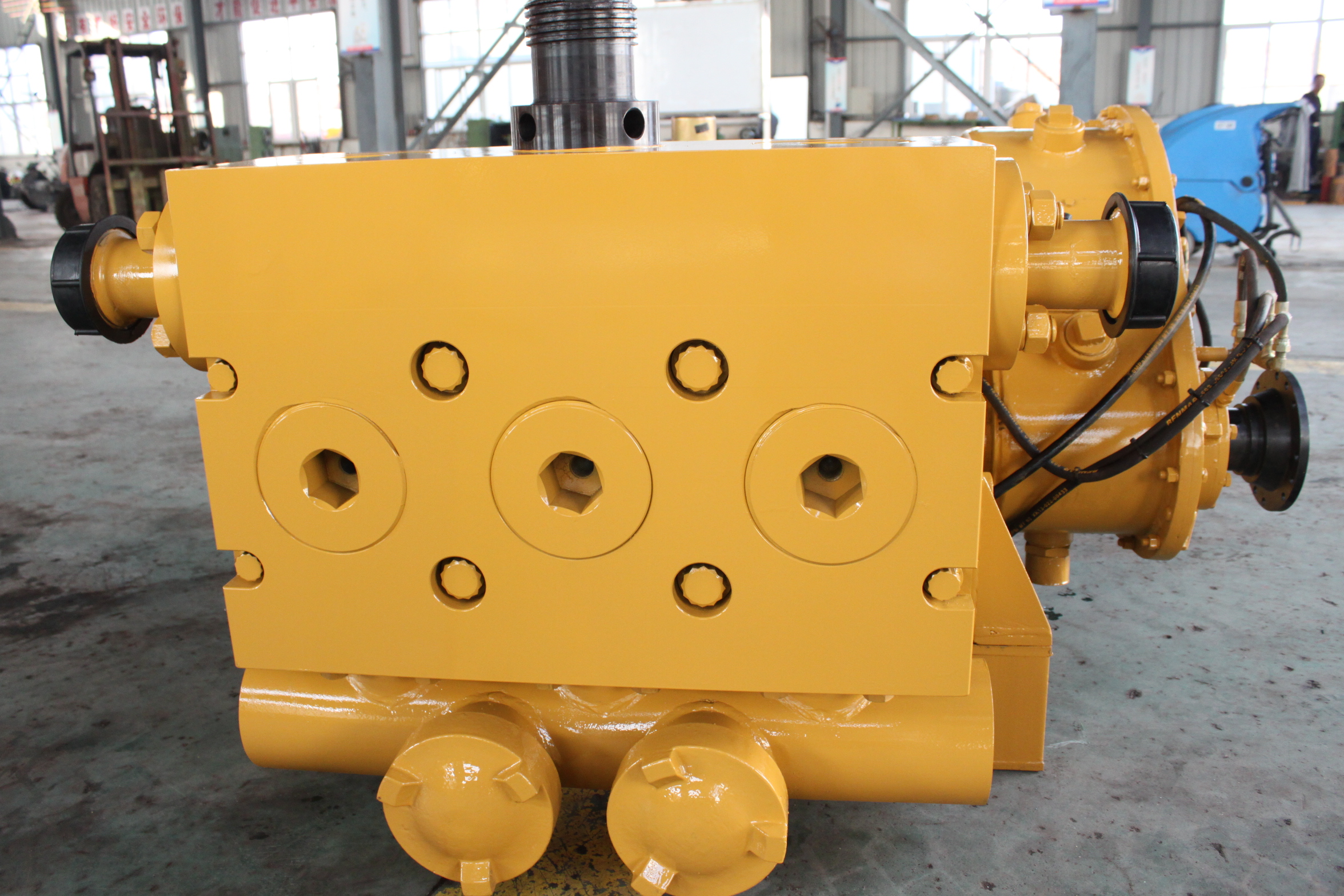

Fluid end
1. The hydraulic cylinder is straight pass-through structure, it can make the fluid flow smoothly, volumetric efficiency higher and structure compact.
2. The three hydraulic cylinders are interchangeable.
3. The cylinder head and valve pot cover can be rapidly tightened, convenient for assembly and teardown.
4. The suction valve and discharge valve can be interchanged
5. The piston and liner bore are open wide structure, convenient for observing.
|
Model
|
3NB500F
|
3NB800F
|
3NB1000F
|
3NB1300F
|
3NB1600F
|
|
Type
|
triplex single action piston Pump
|
triplex single action piston pump
|
triplex single action piston pump
|
triplex single action piston pump
|
triplex single action piston pump
|
|
Rated input power
|
373kW
|
597kW
|
746kW
|
969kW
|
1193kW
|
|
500hp
|
800hp
|
1000hp
|
1300hp
|
1600hp
|
|
|
Rated speed
|
120 stroke/minute
|
150 stroke/minute
|
140 stroke/minute
|
120 stroke/minute
|
120 stroke/minute
|
|
120SPM
|
150SPM
|
140SPM
|
120SPM
|
120SPM
|
|
|
Max. liner bore × stroke
|
170×229mm
|
170×229mm
|
170×254mm
|
180×305mm
|
180×305mm
|
|
6.6930×9
|
6.6930×9
|
6.6930×10
|
7.0867×12
|
7.0867×12
|
|
|
Gear type
|
Herringbone (double-spiral)
|
Herringbone (double-spiral)
|
Herringbone (double-spiral)
|
Herringbone (double-spiral)
|
Herringbone (double-spiral)
|
|
Gear ratio
|
3.962:1
|
4.185:1
|
4.207:1
|
4.206:1
|
4.206:1
|
|
Lubrication
|
force and splash
|
force and splash
|
force and splash
|
force and splash
|
force and splash
|
|
Suction flange
|
8 (203mm
|
10254mm
|
12305mm
|
12305mm
|
12305mm
|
|
Discharge flange
|
103mm- 35MPa
|
130mm-35MPa
|
130mm-35MPa
|
130mm-35MPa
|
130mm-35MPa
|
|
GB3165.2-82
|
GB3165.2-82
|
GB3165.2-82
|
GB3165.2-82
|
GB3165.2-82
|
|
|
4- 5000psi
|
5 1/8- 5000 psi
|
5 1/8- 5000 psi
|
5 1/8- 5000 psi
|
5 1/8- 5000 psi
|
|
|
Pinion shaft diameter and extension
|
139.7×257mm
|
177.8×324mm
|
196.9×337mm
|
215.9×337mm
|
215.9×337mm
|
|
5 1/2×10 1/8
|
7×12 3/4
|
7 3/4×13 1/4
|
8 1/2×13 1/4
|
8 1/2×13 1/4
|
|
|
Key
|
31.75×31.75mm
|
44.45×44.45mm
|
50.8×50.8mm
|
50.8×50.8mm
|
50.8×50.8mm
|
|
1 1/4×1 1/4
|
1 3/4×1 3/4
|
2×2
|
2×2
|
2×2
|
|
|
Valve pot
|
API6 #
|
API6 #
|
API6 #
|
API7 #
|
API7 #
|
|
Overall dimension
|
3400×1950×1440mm
|
3963×3024×1694mm
|
4269×3167×1818mm
|
4426×3260×2004mm
|
4426×3260×2004mm
|
|
133 7/8×76 3/4×56 11/16
|
156×119×66 11/16
|
168×124 5/8×71 9/16
|
174 1/4×128 3/8×78 7/8
|
174 1/4×128 3/8×78 7/8
|
|
|
Weight of main body
|
10350 kg
|
14500 kg
|
18790 kg
|
24532 kg
|
24715 kg
|
|
22818 lb
|
31967 lb
|
41425 lb
|
54084 lb
|
54487 lb
|
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Our company mainly deals in Hardware Tools , combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，The company provides various centrifugal pumps, chemical pumps, screw pumps , Booster Pumps , variable frequency constant pressure pumps, hydrochloric acid pumps, testing pumps, etc. Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?.
