Products Description

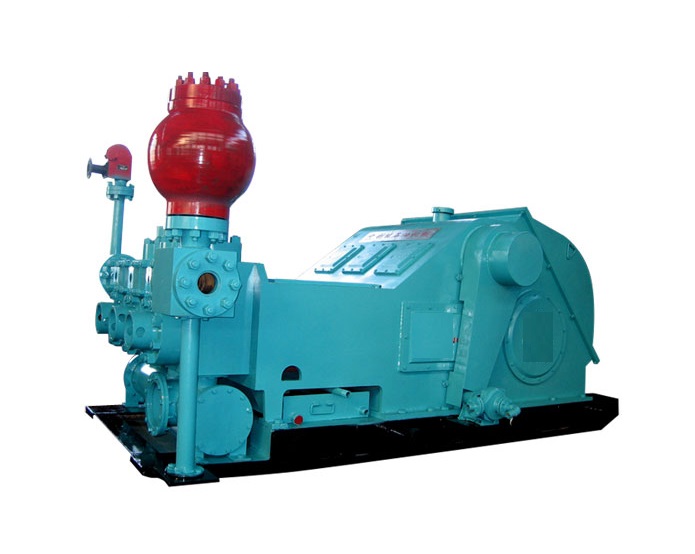

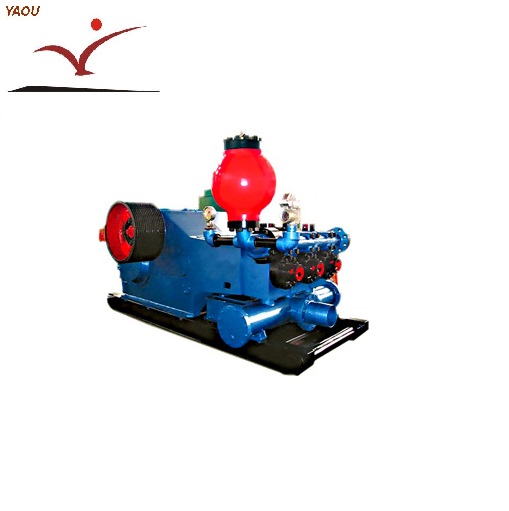

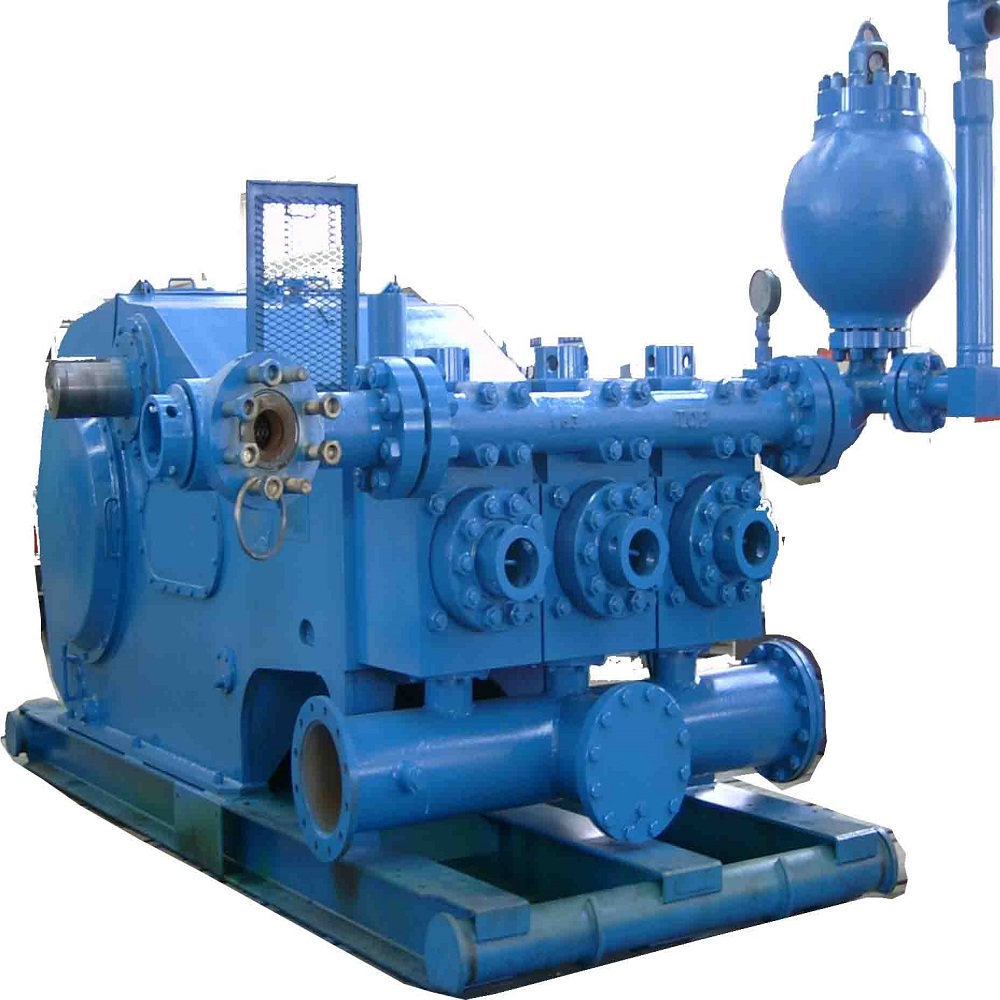

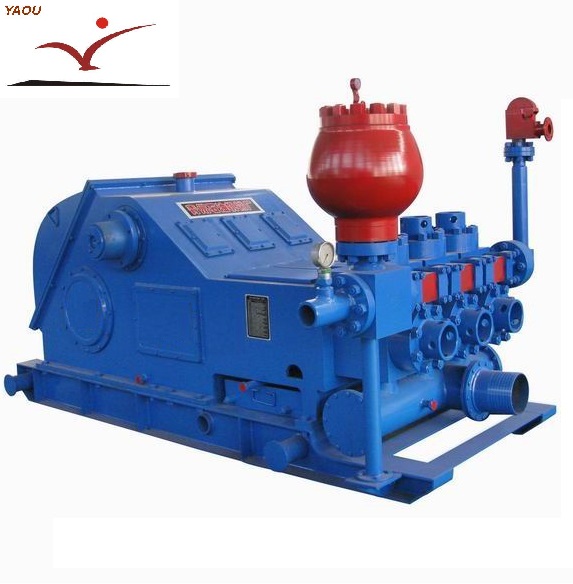

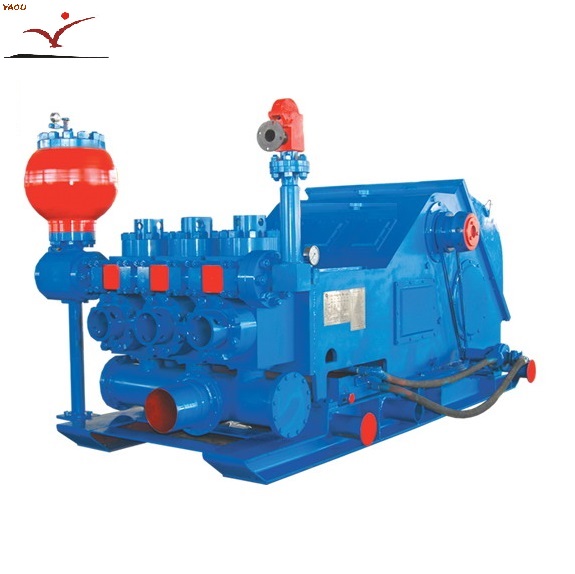

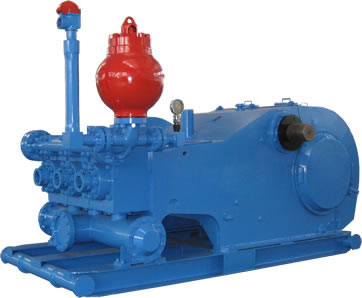

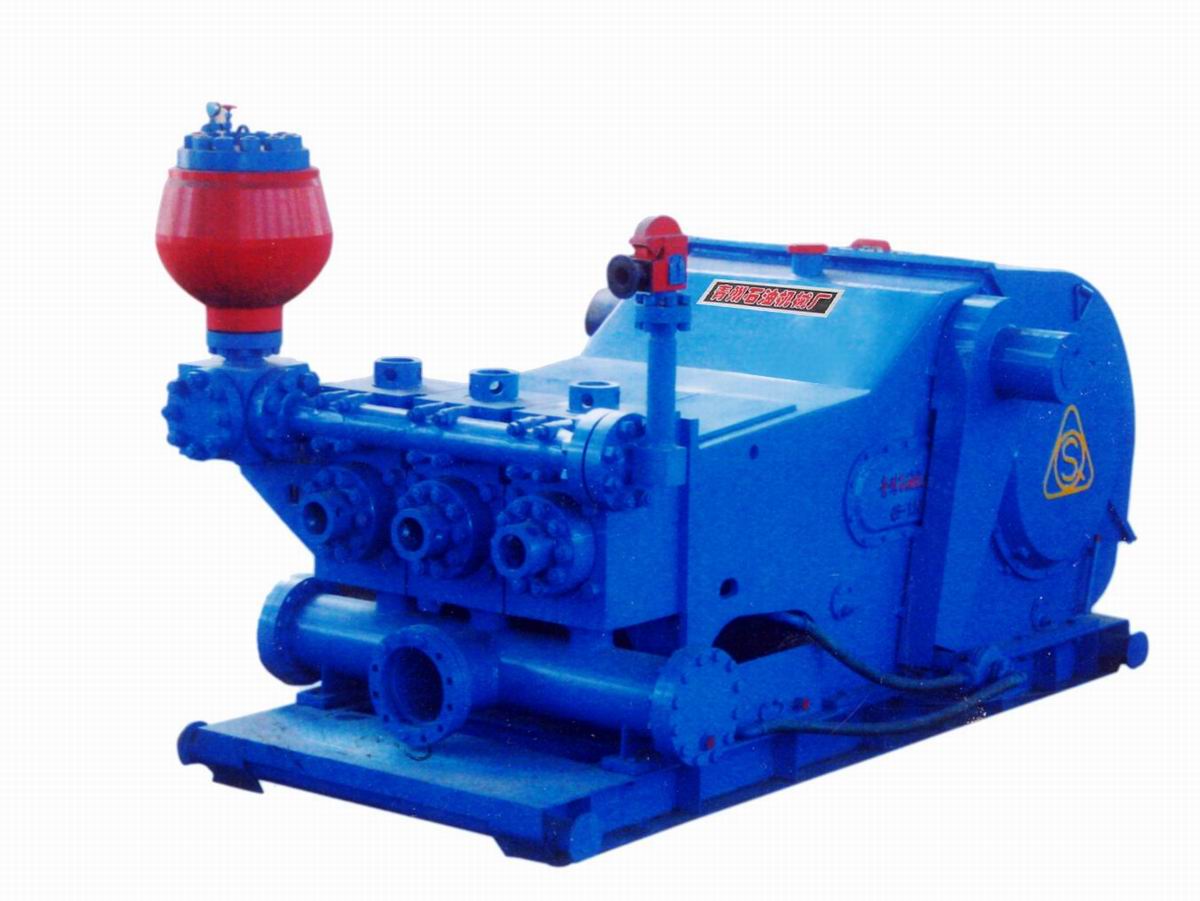

Model No.: PZ-7 Mud Pump
Status: New
Warranty Period: 1.5 Years
Applicable Industry: Energy &Amp; Mining
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Russia, Uzbekistan, Kyrgyzstan, India, Ukraine, Kazakhstan, Pakistan, Indonesia, Bangladesh, Tajikistan, Turkey
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, Uzbekistan
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Pump
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Place Of Origin: Jiangsu, China
Applicable Industries: Energy & Mining
Material: Carbon Steel
Warranty: 1.5 Years
Processing Type: Casting
Certification: Api
Application: Oil
Use: Well Drilling
Brand Name: Yaou
Type: Drilling Accessory Equipment
Showroom Location: Egypt, Russia, Uae, Uzbekistan
Machine Type: Drilling Equipment, Type
Local Service Location: Egypt, Canada, Turkey, United States, Germany, Viet Nam, Brazil, Indonesia, Pakistan, India, Mexico, Spain, Morocco, Kenya, Uae, Romania, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan
Packaging: Packaging meet export requirements
Productivity: 10
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 10
Certificate: API
HS Code: 8413400000
Port: SHANGHAI
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
- Selling Units:
- Set/Sets
- Package Type:
- Packaging meet export requirements
Standard Features
Nodular iron power frame, eccentric, connection rods, and crossheads
Double-row-spherical roller bearnings carry eccentric
Double extended Jackshaft carried on heavy-duty straight roller bearings
Dual roller bearing connecting rod
Heat-treated alloy steel main gears are bolted to the eccentric
Replaceable bronze crosshead slides
Full splash lubrication, with oil Pump to feed working parts
Heat-treated alloy steel, interchangeable fluid cyclinders
Three-rib API-7 urethane insert valves and seats
Replaceable-type element oil filter and oil pressure gauge
Threaded valve covers
Plated piston rods
Complete piston washing and lubrication system
|
Model
|
PAH-275 Mud Pump
|
|
Input power rating (KW)
|
205KW (275HP)
|
|
Rated pump speed (SPM)
|
175
|
|
Stroke (mm)
|
203.2(8)
|
|
Gear ratio
|
4.7:1
|
|
Max. working pressure (MPa)
|
21.9 (3118PSI)
|
|
Specifications
|
Max.Input
|
Max. RPM
|
Stroke Length
|
Rod Load
|
Pump Weight
|
Gear Ratio
|
|
PAH 275
|
275 BHP (205 kw)
|
175 RPM
|
8" (203 mm)
|
22,030 lbs. (9,990 kg)
|
9,810 lbs. (4,450 kg)
|
4.7:1
|
|
PZG (PZ-7)
|
550 BHP (410 kw)
|
145 RPM
|
7" (178 mm)
|
64,400 lbs. (29,211 kg)
|
16,765 lbs. (7,620 kg)
|
4.625:1
|
|
PZG (PZ-8)
|
750 BHP (559 kw)
|
145 RPM
|
8" (203 mm)
|
76,800 lbs. (34,836 kg)
|
17,400 lbs. (7,900 kg)
|
4.5:1
|
|
PZJ (PZ-9)
|
1000BHP (746 kw)
|
130 RPM
|
9" (229 mm)
|
101,550 lbs. (36,062 kg)
|
28,425 lbs. (12,890 kg)
|
4.48:1
|
|
PZJ (PZ-10)
|
1,350BHP (1,007 kw)
|
115 RPM
|
10" (254 mm)
|
139,800 lbs. (63,276 kg)
|
37,000 lbs. (16,815 kg)
|
4.38:1
|
|
PZJ (PZ-11)
|
1,600BHP (1,193 kw)
|
115 RPM
|
11" (279 mm)
|
150,300 lbs. (68,175 kg)
|
37,000 lbs. (16,815 kg)
|
4.38:1
|
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Company Introduction
Our company mainly deals in Hardware Tools , combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，The company provides various centrifugal pumps, chemical pumps, screw pumps , Booster Pumps , variable frequency constant pressure pumps, hydrochloric acid pumps, testing pumps, etc. Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.
FAQ
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machine
