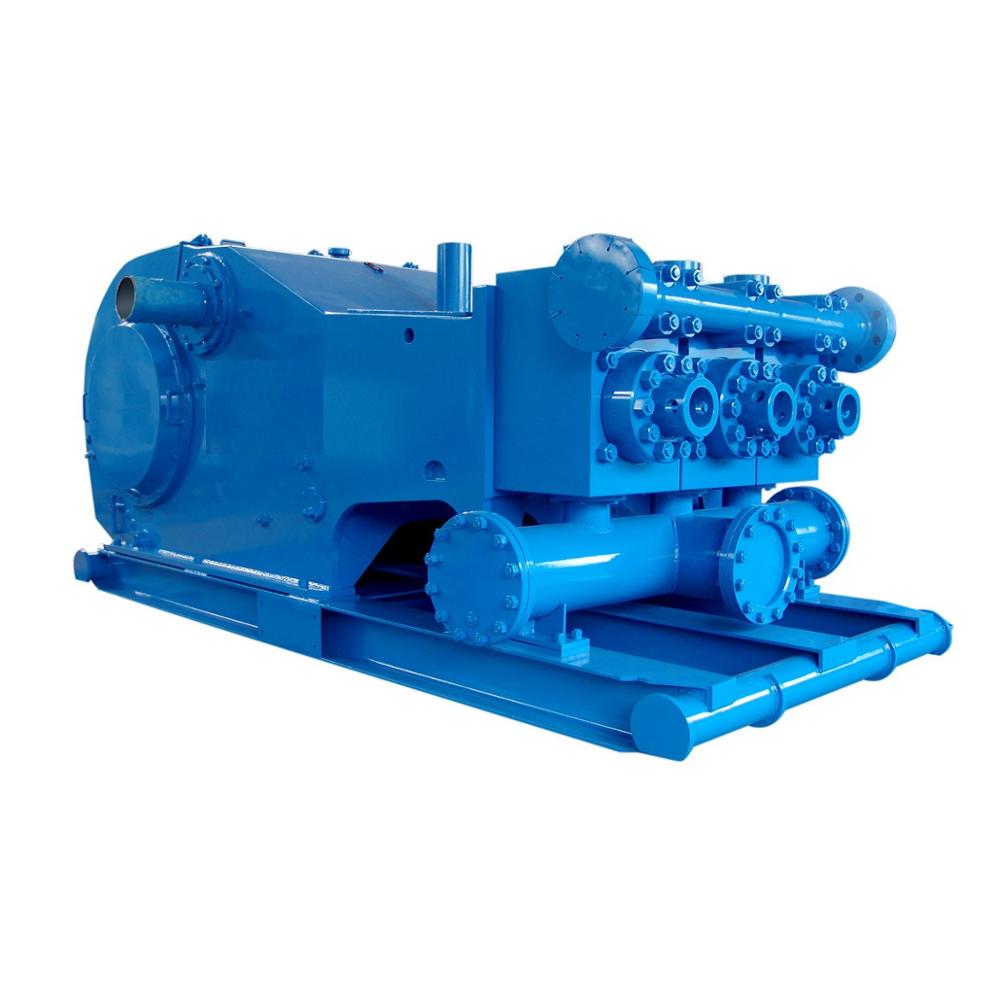

API Drilling 3NB1600F Mud pump,

Description

Argument

Products Description

Overview

Product Attributes

Model No.: 3NB1600F

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Energy &Amp; Mining

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Uzbekistan, Mexico, Russia, India, Pakistan, Indonesia, Saudi Arabia, Tajikistan, Bangladesh, Kazakhstan

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, Uzbekistan

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Motor

Warranty: 1 Year

Place Of Origin: Jiangsu, China

Material: Carbon Steel

Processing Type: Casting

Certification: Api

Machine Type: Drilling Equipment

Use: Well Drilling

Brand Name: Yaou

Type: Drilling Accessory Equipment

Model Number: 3nb1600f

Supply Ability & Additional Information

Packaging: standard package

Productivity: 10

Transportation: Ocean,Land,Air,Express

Place of Origin: CHINA

Supply Ability: 100 Set/Sets per Day

Certificate: API

HS Code: 8413400000

Port: shanghai,China

Payment Type: L/C,D/A,D/P,T/T

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: standard package

1. What is the specification of the mud pump ?

Power end

1. The frame is a welded structure with steel plate, high strength, rigidity and light weight.

2. Adopting herringbone gear drive, running smoothly

Fluid end

1. The hydraulic cylinder is straight pass-through structure, it can make the fluid flow smoothly, volumetric efficiency higher and structure compact.

2. The three hydraulic cylinders are interchangeable.

3. The cylinder head and valve pot cover can be rapidly tightened, convenient for assembly and teardown.

4. The suction valve and discharge valve can be interchanged

5. The piston and liner bore are open wide structure, convenient for observing..

Model	3NB500F	3NB800F	3NB1000F	3NB1300F	3NB1600F
Type	triplex single action piston Pump	triplex single action piston pump	triplex single action piston pump	triplex single action piston pump	triplex single action piston pump
Rated input power	373kW	597kW	746kW	969kW	1193kW
Rated input power	500hp	800hp	1000hp	1300hp	1600hp
Rated speed	120 stroke/minute	150 stroke/minute	140 stroke/minute	120 stroke/minute	120 stroke/minute
Rated speed	120SPM	150SPM	140SPM	120SPM	120SPM
Max. liner bore × stroke	170×229mm	170×229mm	170×254mm	180×305mm	180×305mm
Max. liner bore × stroke	6.6930×9	6.6930×9	6.6930×10	7.0867×12	7.0867×12
Gear type	Herringbone (double-spiral)	Herringbone (double-spiral)	Herringbone (double-spiral)	Herringbone (double-spiral)	Herringbone (double-spiral)
Gear ratio	3.962:1	4.185:1	4.207:1	4.206:1	4.206:1
Lubrication	force and splash	force and splash	force and splash	force and splash	force and splash
Suction flange	8 (203mm	10254mm	12305mm	12305mm	12305mm
Discharge flange	103mm- 35MPa	130mm-35MPa	130mm-35MPa	130mm-35MPa	130mm-35MPa
	GB3165.2-82	GB3165.2-82	GB3165.2-82	GB3165.2-82	GB3165.2-82
	4- 5000psi	5 ¹/₈– 5000 psi	5 ¹/₈– 5000 psi	5 ¹/₈– 5000 psi	5 ¹/₈– 5000 psi
Pinion shaft diameter and extension	139.7×257mm	177.8×324mm	196.9×337mm	215.9×337mm	215.9×337mm
Pinion shaft diameter and extension	5 ¹/₂×10 ¹/₈	7×12 ³/₄	7 ³/₄×13 ¹/₄	8 ¹/₂×13 ¹/₄	8 ¹/₂×13 ¹/₄
Key	31.75×31.75mm	44.45×44.45mm	50.8×50.8mm	50.8×50.8mm	50.8×50.8mm
Key	1 ¹/₄×1 ¹/₄	1 ³/₄×1 ³/₄	2×2	2×2	2×2
Valve pot	API6 ^#	API6 ^#	API6 ^#	API7 ^#	API7 ^#
Overall dimension	3400×1950×1440mm	3963×3024×1694mm	4269×3167×1818mm	4426×3260×2004mm	4426×3260×2004mm
Overall dimension	133 ⁷/₈×76 ³/₄×56 ¹¹/₁₆	156×119×66 ¹¹/₁₆	168×124 ⁵/₈×71 ⁹/₁₆	174 ¹/₄×128 ³/₈×78 ⁷/₈	174 ¹/₄×128 ³/₈×78 ⁷/₈
Weight of main body	10350 kg	14500 kg	18790 kg	24532 kg	24715 kg
Weight of main body	22818 lb	31967 lb	41425 lb	54084 lb	54487

Our company mainly deals in Hardware Tools , combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，The company provides various centrifugal pumps, chemical pumps, screw pumps , Booster Pumps , variable frequency constant pressure pumps, hydrochloric acid pumps, testing pumps, etc. Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.

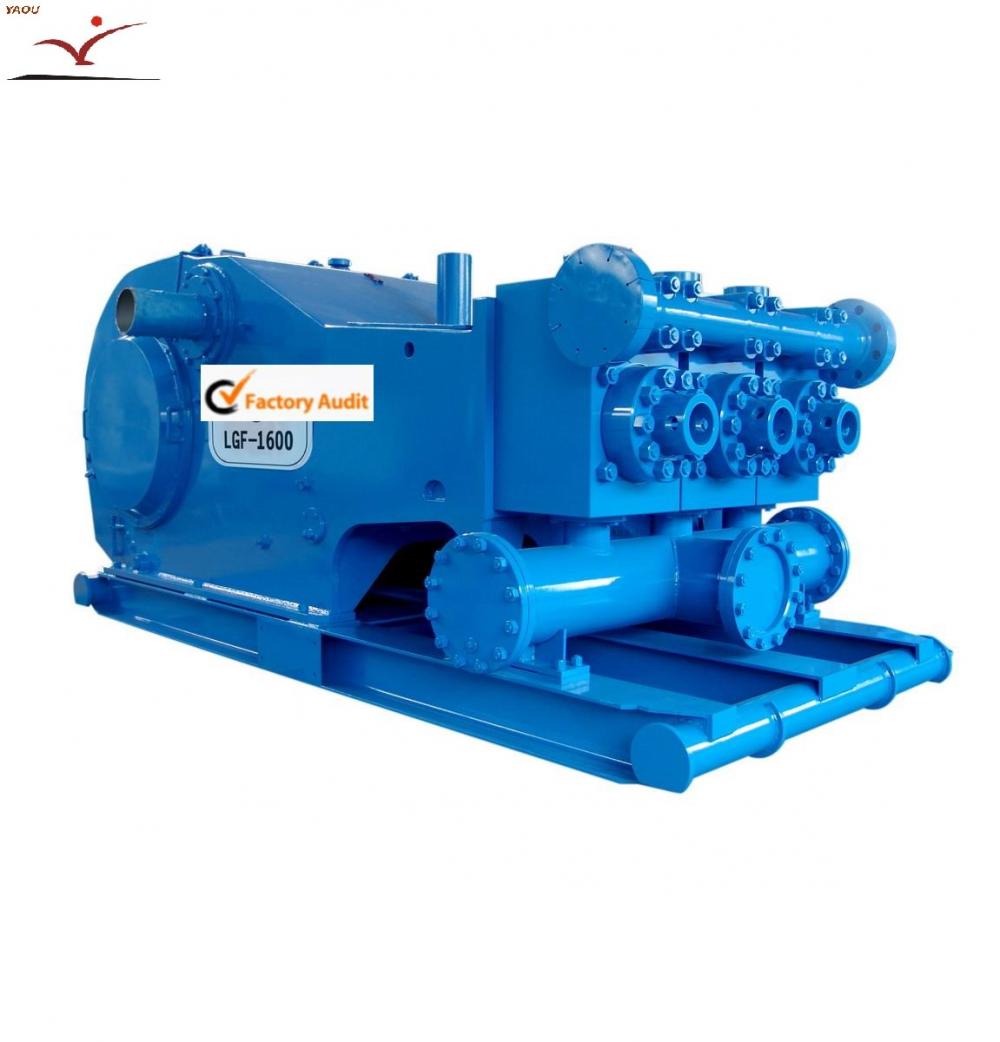

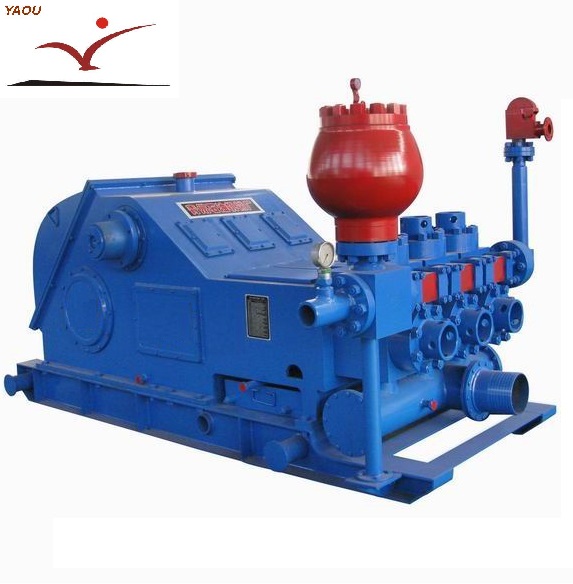

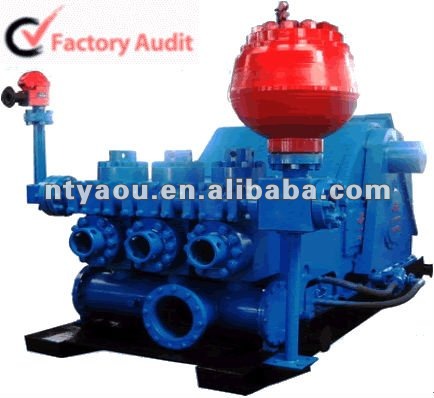

2. What does the Mud Pump looks like? Mud Pump 87

3. Our ability?

Sand Pump 14 Sand Pump 16

Sand Pump 15

What is our Skype ID?

SKYPE: YAOUTRADE2

Company Overview

Rugao Yaou Import & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.

Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. Our company also operates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.

Company Photos
