Products Description
Model No.: 2500SB
Brand: XBSY
Status: New
Warranty Period: 1.5 Years
Applicable Industry: Other, Food Shop, Construction Works, Energy &Amp; Mining, Machinery Repair Shops, Manufacturing Plant
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Pump
Standard Or Nonstandard: Standard
Power Source: Electric
Voltage: 380v
Fuel: Gasoline
Theory: Centrifugal Pump
Place Of Origin: Jiangsu, China
Usage: Oil
Brand Name: Yaou
Cable Length: 20
Model Number: 2500sb
Color: Green
Horsepower: 7.5kw
Pressure: 100hp, High Pressure
Outlet Size: 20
Power: 42kw, Electric
Packaging: Packaging meet export requirements for 2500SB Series centrifugal sand pump for drilling solid control equipment
Productivity: 50
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 20
Certificate: CE
HS Code: 8413701010
Port: shanghai
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
- Selling Units:
- Set/Sets

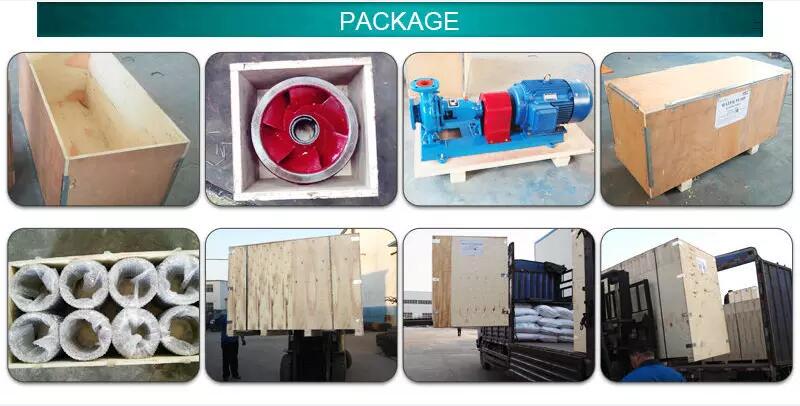

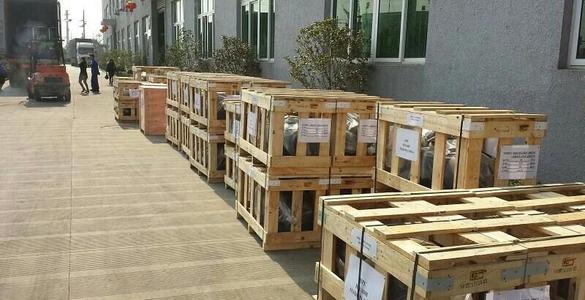

- Package Type:
- Packaging meet export requirements for 2500SB Series centrifugal sand pump for drilling solid control equipment
- Picture Example:
-

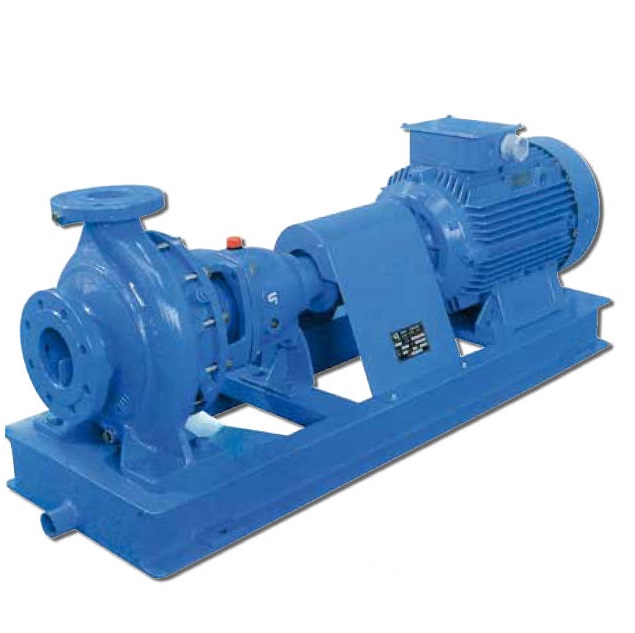

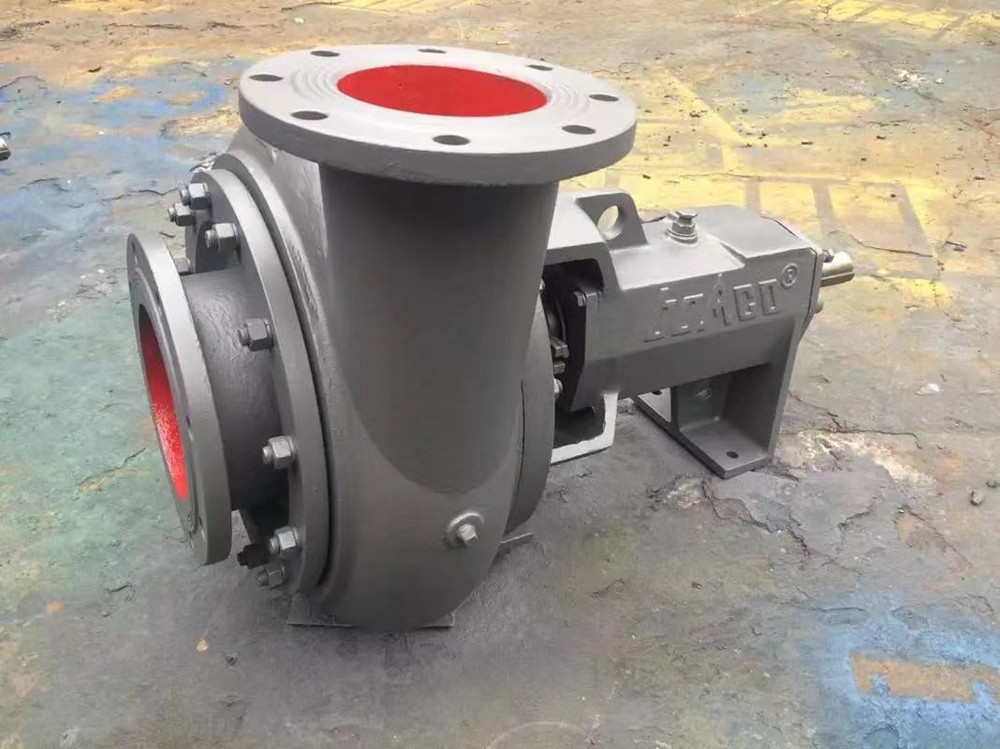

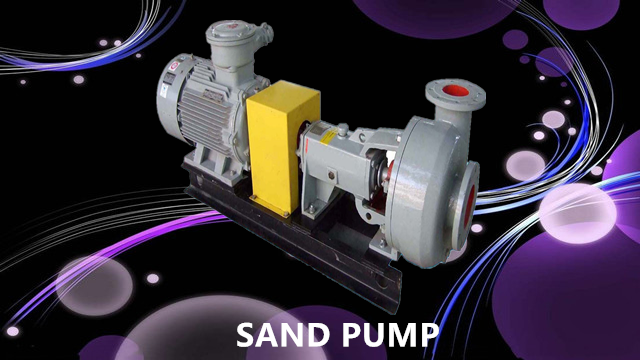

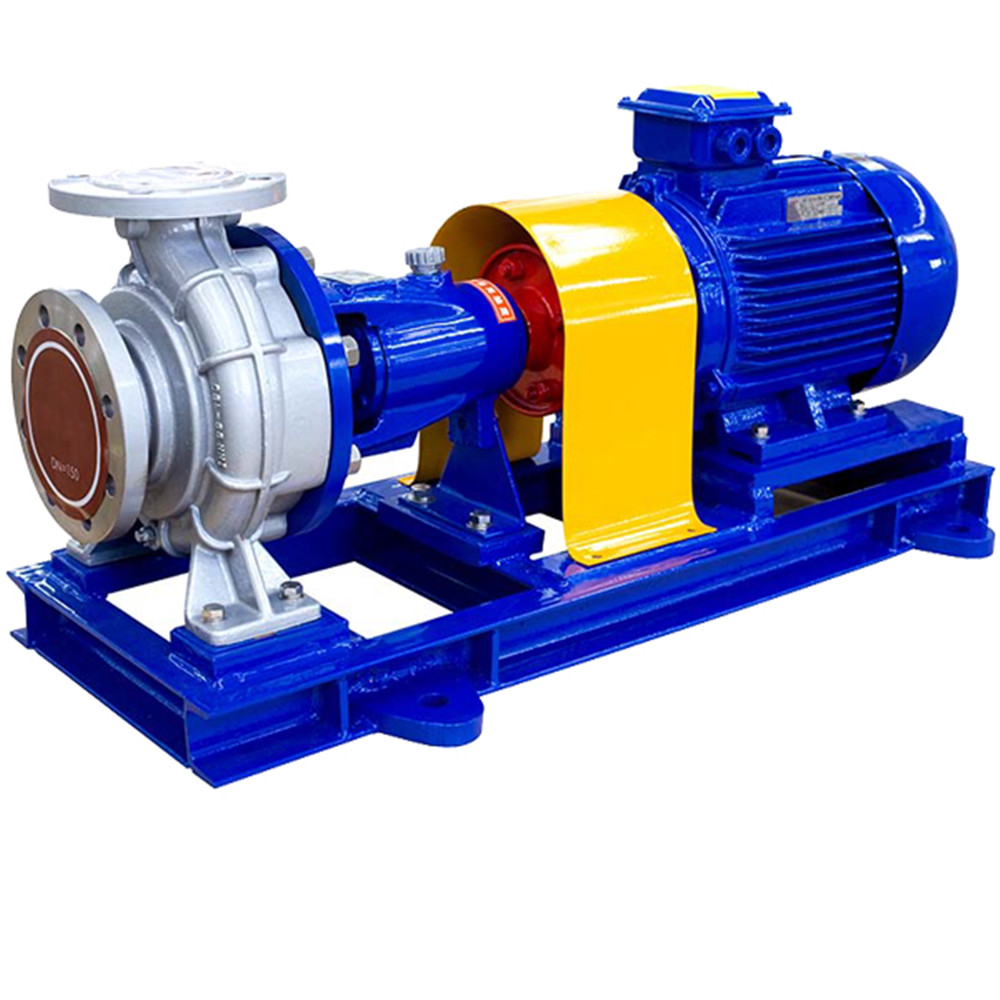

2500SB series sand pumps are made as per the demands of American drilling companies,newly designed and manufactured according to features of petroleum and natural gas drilling equipment.With axial-suction structures and wear- resistant cast iron for flow-passing parts employed,such pumps suitable for delivering corrosive drilling liquid that contains suspended pellets and other similar liquids,and also the best supporting pumps for sand removers,mud removers and mixing funnel,and ideal pouring pumps for mud pumps as well.During design of their parameters,that supporting equipment can run under the best operating mode has been fully considered.As a result,these pumps have the advantages of high universality & exchangeability,little shaft leakage,high reliability,long service life and convenient maintenance.
Sand pumps 2500SB8×6 and SB6×5 are respectively recommended to be used with drillers of 3,200m drilling depth or above and 2,500m or below.
2500SB series sand pumps have 22 specifications at present,which may also be derived more specifications as per the different requirements of the customers for performance,power and motor.Seals of 2500SB series sand pumps are of one typemechanical seal that is with a long lifeauxiliary seal is packing seal that can avoid occurrence of accidents.The practice demonstrates that seals of 2500SB series sand pumps are reliable,and convenient for maintenance.
The shaft seals of SB series sand pumps are lubricated with grease,and bearing are lubricated with machine oil.Since bearing covers at two ends of bearings are equipped with grease injectors,bearings can be lubricated with grease as well.
Both inlet flanges and outlet flanges of 2500SB series sand pumps are with standard dimensions, in metric system for domestic customers and in English system for foreign customers.
Our 2500SB series sand pumps have been used for land and offshore drilling platforms in more than 20 countries over the world,and the result shows that these pumps requires little maintenance expenses other than the normal replacement of sealing components Working conditions
|
Type
|
Capacity(m3/h)
|
Head(m)
|
Speed(rpm)
|
Efficiency(%)
|
Power(kw)
|
Weight(kg)
|
Dimension L*W*H(mm)
|
|
|
50Hz/60HZ
|
Shaft power
|
Motor power
|
||||||
|
SB6*8J-13
|
240
|
37
|
0/1780
|
67
|
36
|
75
|
1130
|
2056*698*1022
|
|
SB6*8J-12
|
200
|
36
|
1480/1780
|
66
|
29.7
|
55
|
1000
|
1916*638*917
|
|
SB6*8J-12
|
200
|
33
|
1480/1780
|
64
|
28
|
45
|
850
|
1916*638*917
|
|
SB5*6J-12
|
200
|
33
|
1480/1780
|
64
|
28
|
45
|
785
|
1806*528*917
|
|
SB5*6J-12
|
180
|
31
|
1480/1780
|
63
|
24.1
|
37
|
760
|
1781*528*844
|
|
SB5*6J-11
|
160
|
28
|
1470/1780
|
62
|
19.7
|
30
|
650
|
1746*528*844
|
|
SB5*6J-11
|
140
|
22
|
1470/1780
|
62
|
13.5
|
22
|
545
|
1686*516*764
|
|
SB4*5J-10
|
150
|
26
|
1470/1780
|
61
|
17.4
|
30
|
580
|
1662*490*817
|
|
SB4*5J-10
|
150
|
25
|
1470/1780
|
61
|
16.8
|
22
|
480
|
1602*453*720
|
|
SB4*5J-9
|
93
|
20
|
1460/1780
|
58
|
8.8
|
15
|
400
|
1564*453*705
|
|
SB3*4J-10
|
85
|
26
|
1460/1760
|
61
|
9.9
|
15
|
360
|
1405*433*682
|
|
SB3*4J-9
|
80
|
23
|
1460/1760
|
61
|
8.2
|
11
|
340
|
1365*443*682
|
|
SB3*4J-9
|
54
|
18
|
1460/1760
|
60
|
4.4
|
7.5
|
290
|
1245*443*650
|
|
SB2*3J-10
|
55
|
22
|
1460/1760
|
60
|
5.5
|
11
|
320
|
1352*446*682
|
|
SB2*3J-9
|
50
|
18
|
1440/1750
|
56
|
4.4
|
7.5
|
260
|
1232*446*650
|
|
SB2*3J-8
|
40
|
16
|
1440/1750
|
54
|
3.2
|
5.5
|
245
|
1192*446*650
|
|
SB2*3J-7
|
25
|
11
|
1440/1750
|
50
|
1.5
|
4
|
223
|
1161*446*600
|
Our company mainly deals in Hardware Tools , combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，The company provides various centrifugal pumps, chemical pumps, screw pumps , Booster Pumps , variable frequency constant pressure pumps, hydrochloric acid pumps, testing pumps, etc. Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.
Tags:
Technical parameter

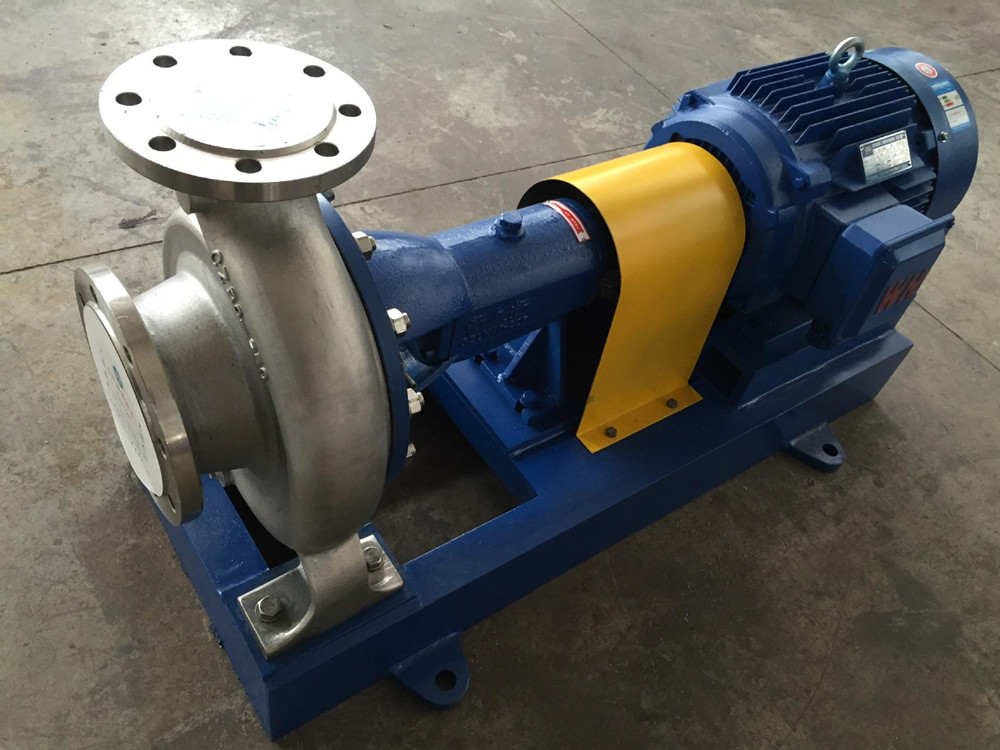

2500SB Centrifugal Pump for drilling solid control equipment 1

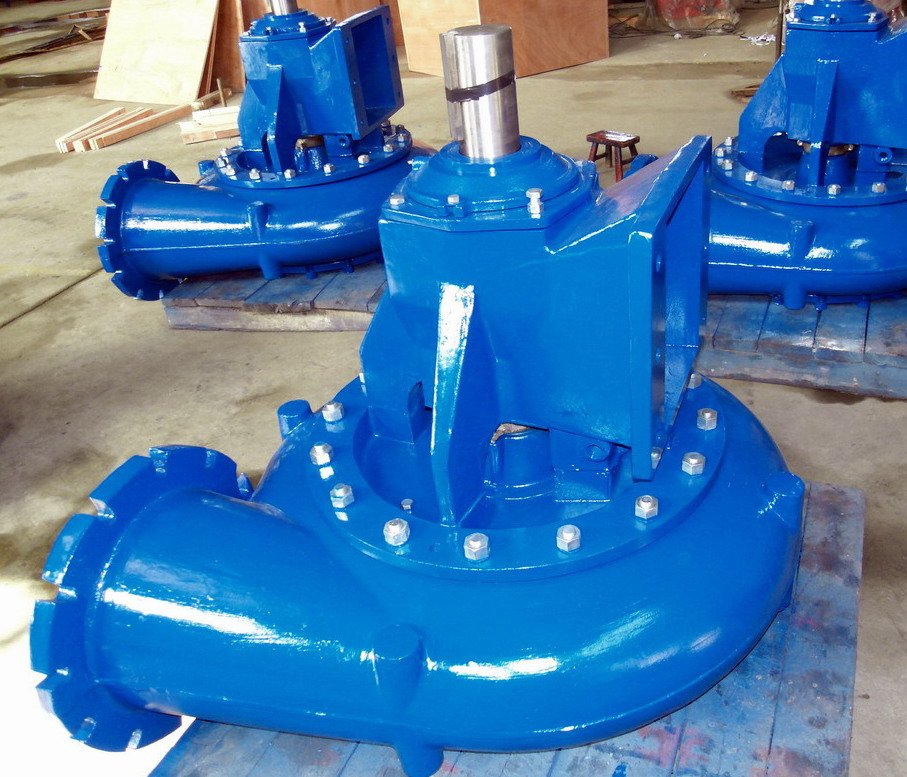

2500SB Centrifugal Pump for drilling solid control equipment 2

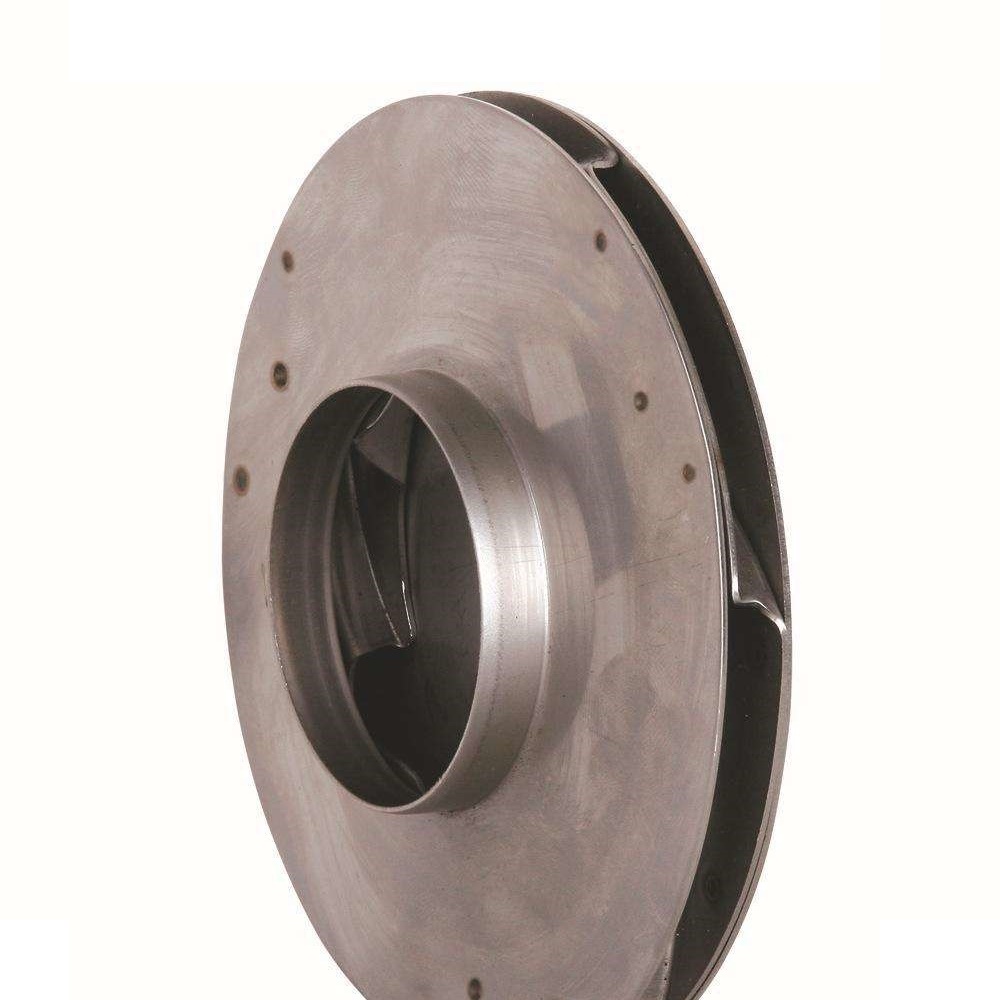

2500SB Centrifugal Pump for drilling solid control equipment 3

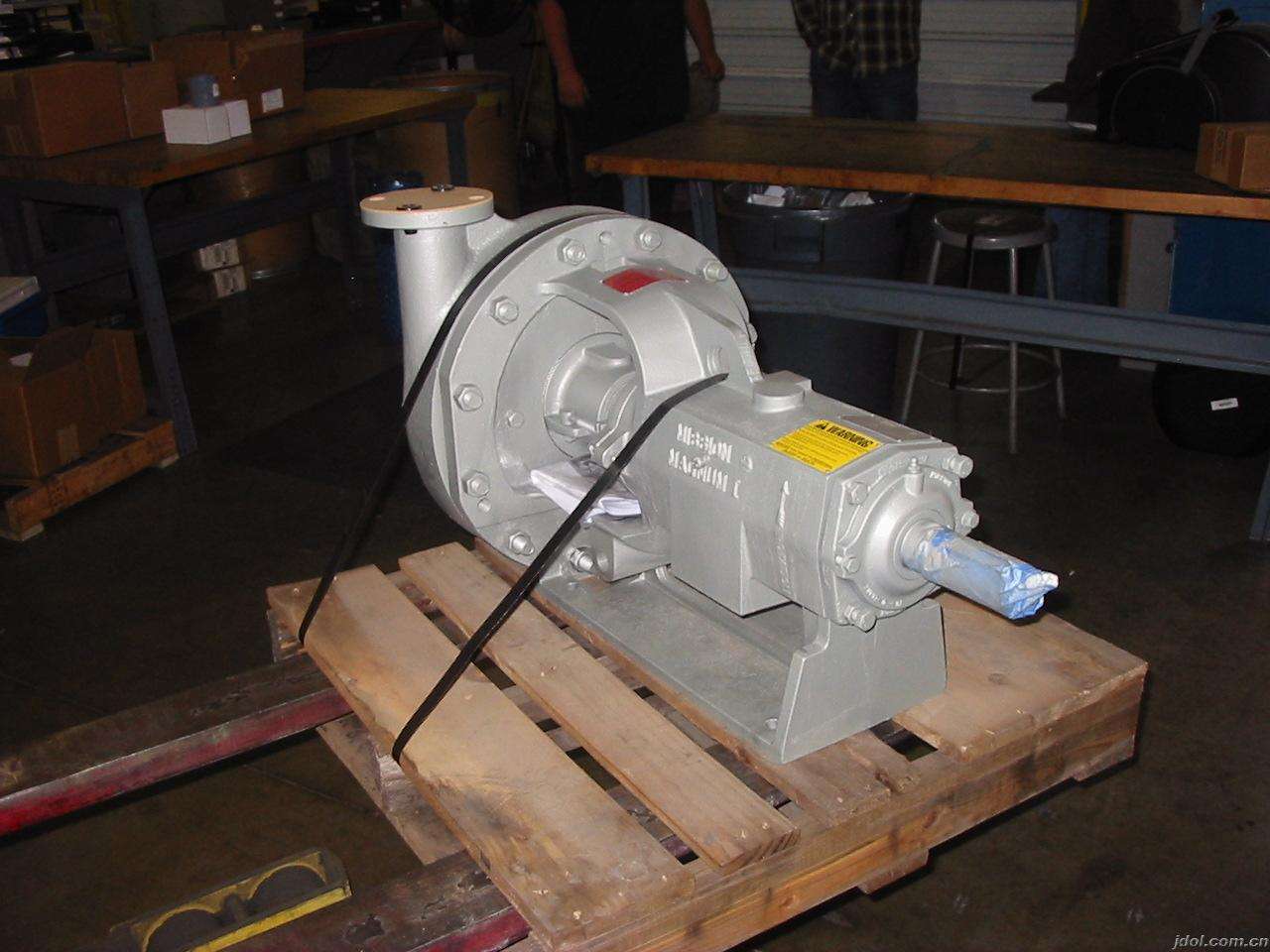

2500SB Centrifugal Pump for drilling solid control equipment 4

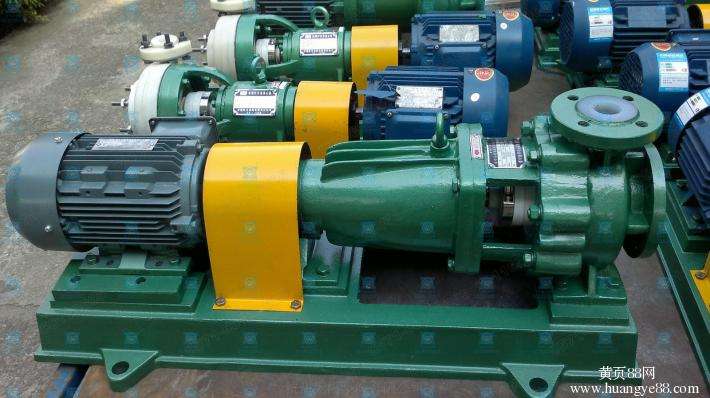

2500SB Centrifugal Pump for drilling solid control equipment 5

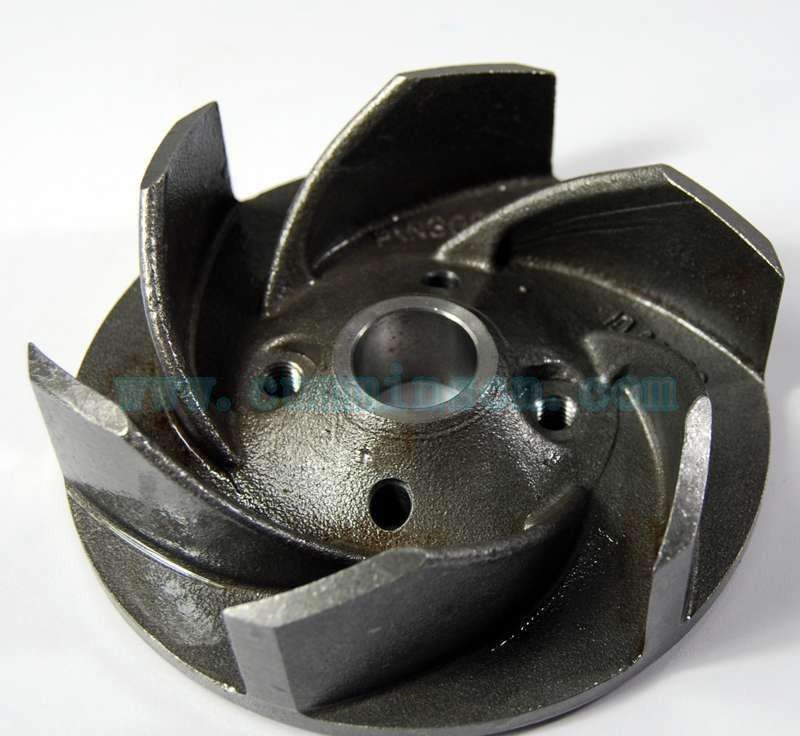

2500SB Centrifugal Pump for drilling solid control equipment 6

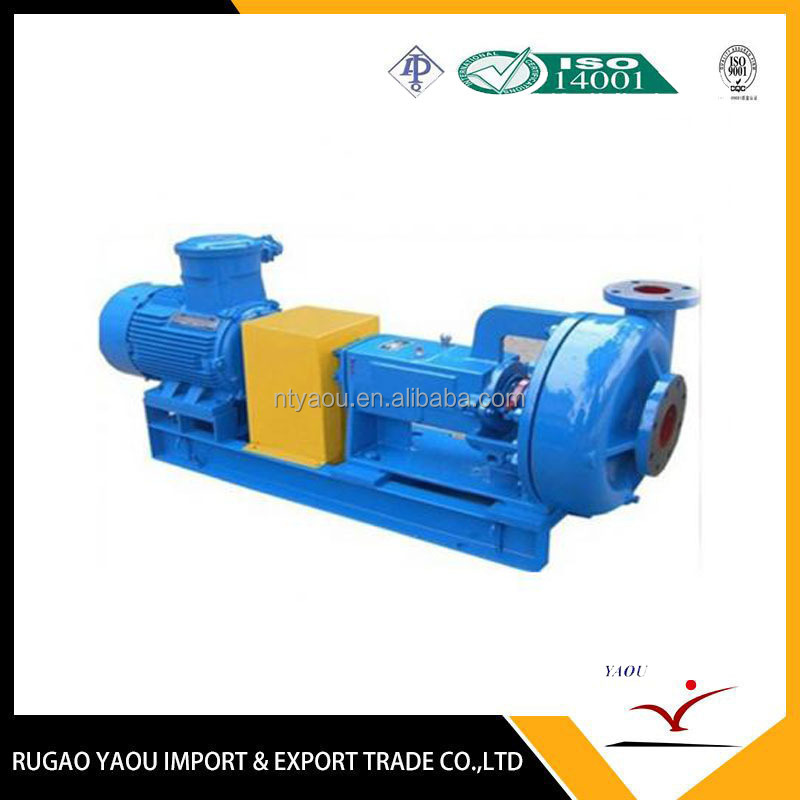

2500SB Centrifugal Pump for drilling solid control equipment 7
