Products Description
Model No.: MCM 118
Brand: MCM
Status: New
Warranty Period: 1.5 Years
Applicable Industry: Energy &Amp; Mining
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Russia, India, Pakistan, Indonesia, Brazil, Tajikistan, Bangladesh, Kazakhstan, Kyrgyzstan, Uzbekistan
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, Uzbekistan
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Motor
Fuel: Diesel
Standard Or Nonstandard: Standard
Power Source: Electric
Theory: Centrifugal Pump
Usage: Oil
Brand Name: Mcm
Model Number: 118
Horsepower: 5hp
Outlet Size: 20
Voltage: 380v
Power: 7.5, Electric
Pressure: Low Pressure
Productivity: 10
Transportation: Ocean,Land,Air
Place of Origin: USA
Supply Ability: 10
HS Code: 8413701010
Port: SHANGHAI
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
- Selling Units:
- Set/Sets
- Picture Example:
-
Product Description
|
Fig. Nº |
Description |
Qty Req |
MCM |
|
|
|
118 Pedestal |
1 |
P18PED |
|
|
|
118 Bearing Cap |
2 |
P18BC |
|
|
|
118 Bearing Cap Gasket |
2 |
P18BCG |
|
|
4 |
118 Bearing Assm. |
2 |
P18BA |
|
|
5 |
118 Oil & Grease Seal |
2 |
P18OGS |
|
|
6 |
118 Bearing Cap Bolt Assm. |
4 |
P18BCBA |
|
|
7 |
118 316-SS Shaft |
1 |
P18SH316SS |
|
|
– |
118 416-SS Shaft |
1 |
P18SH416SS |
|
|
– |
118 Ceramic Coated 416-SS Shaft |
1 |
P18SH416SC |
|
|
8 |
118 Graphite Packing |
1 |
P18PMSG |
|
|
– |
118 King Packing |
1 |
P18PMSK |
|
|
– |
118 Packing |
1 |
P18PMST |
|
|
9 |
118 Gland |
1 |
P18PG |
|
|
10 |
118 Gland Adjusting Bolt Assm. |
2 |
P18GABA |
|
|
11 |
118 Wear Plate Cast Iron |
1 |
P18WPC |
|
|
12 |
118-1 X1.5 RH Cast Iron Impeller |
1 |
P18C11MRXXX |
|
|
– |
118-1.5 X2 RH Cast Iron Impeller |
1 |
P18C12MRXXX |
|
|
– |
118-2 X3 RH Cast Iron Impeller |
1 |
P18C23MRXXX |
|
|
– |
118-3 X4 RH Cast Iron Impeller |
1 |
P18C34MRXXX |
|
|
13 |
118 Housing Gasket |
1 |
P18HG |
|
|
14 |
118-1X1.5 RH Housing Assm. C.I. |
1 |
P18C11HR |
|
|
– |
118-1.5X2 RH C.I Housing Assm. |
1 |
P18C12HR |
|
|
– |
118-2X3 RH C.I Housing Assm. |
1 |
P18C23HR |
|
|
– |
118-3X4 RH C.I Housing Assm. |
1 |
P18C34HR |
|
|
15 |
118 Housing Stud W/Nut |
8 |
P18HSN |
|
|
16 |
118 Drip Bowl Drain Plug |
2 |
P18DBDP |
|
|
17 |
118 Impeller Key |
1 |
P18lK |
|
|
18 |
118 Coupling Key |
1 |
P18CK |
|
|
19 |
118 Shaft Lock Nut Assm. |
1 |
P18LNA |
|
|
20 |
118 Oil Slinger Ring |
1 |
P18SRO |
|
|
21 |
118 Water Slinger Ring |
1 |
P18SRW |
|
|
Note: XX or XXX Indicates Impeller Size |
||||
Centrifugal/Sand Pump, Pump …..
Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
FAQ
Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?
Rugao Yaou Import & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. Our company also operates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Tags:
Technical parameter

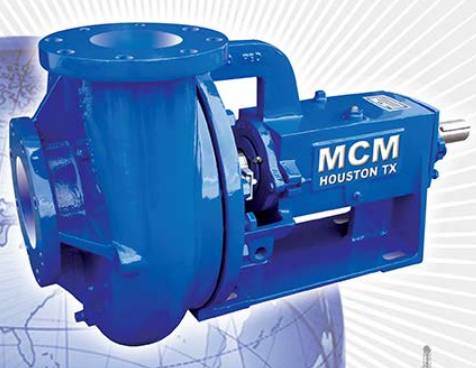

MCM 118 Centrifugal sand PumP Oil rig equipment 1

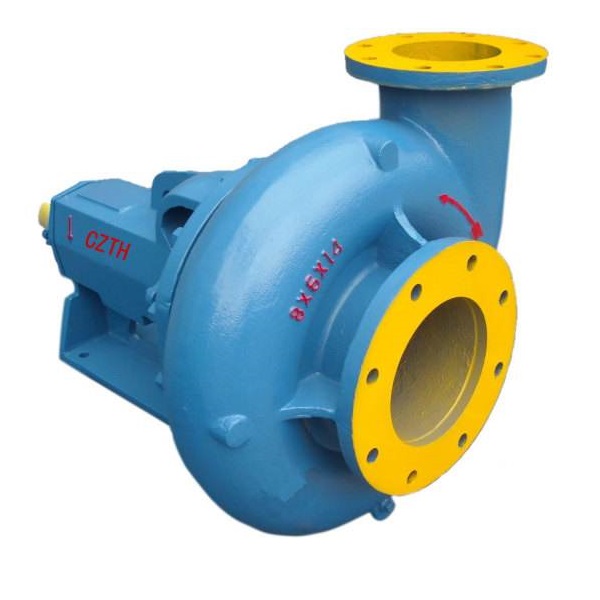

MCM 118 Centrifugal sand PumP Oil rig equipment 2

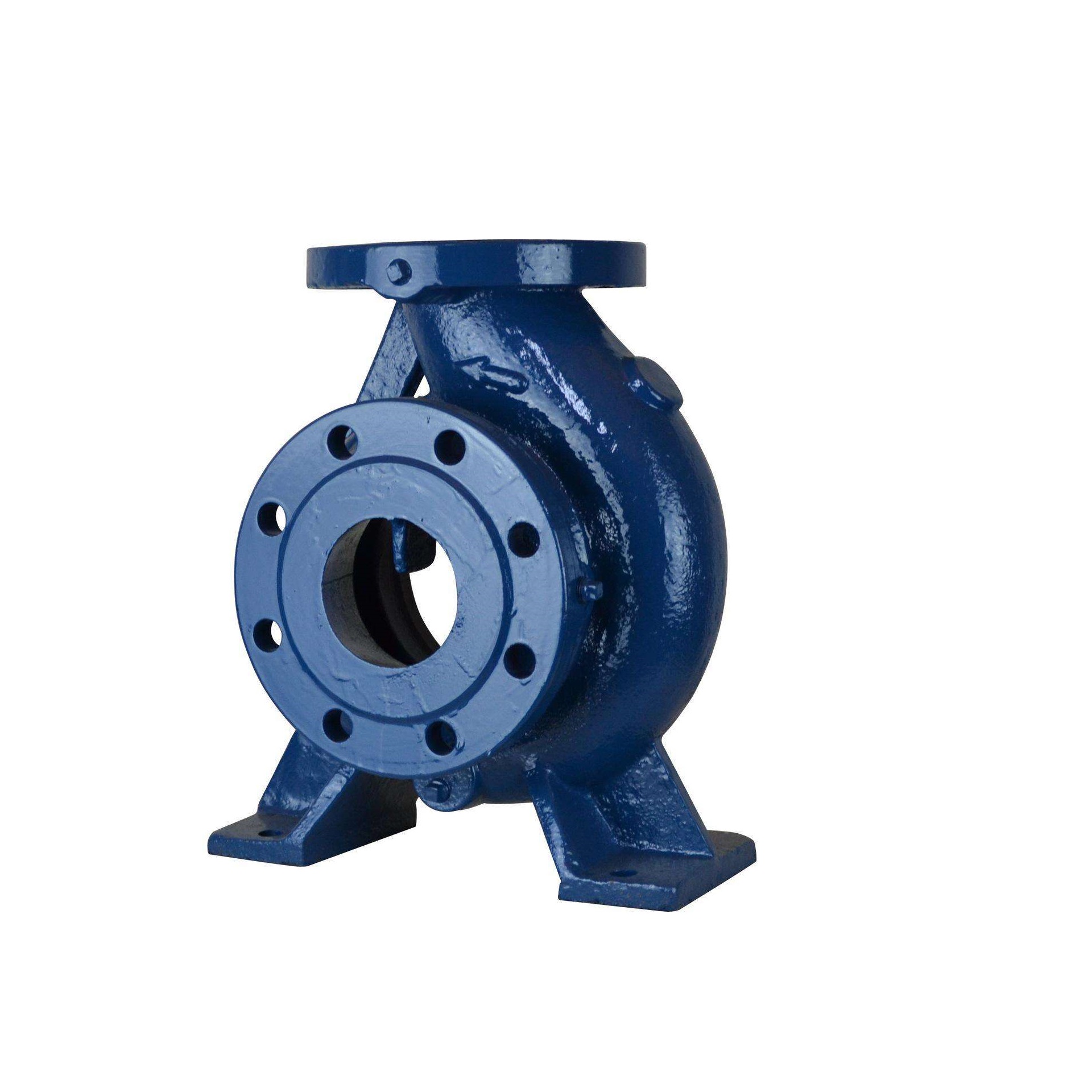

MCM 118 Centrifugal sand PumP Oil rig equipment 3

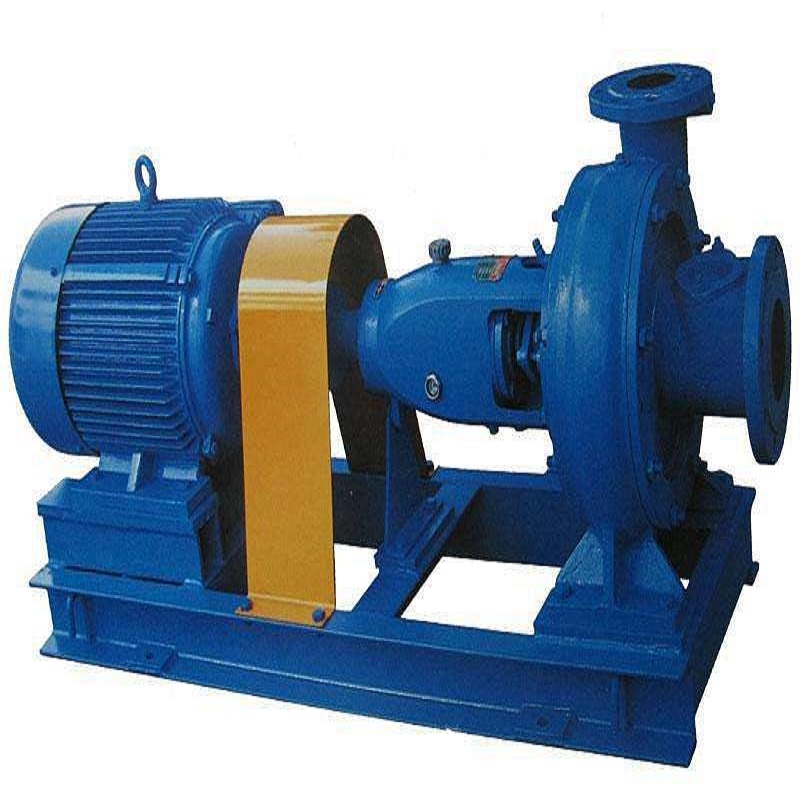

MCM 118 Centrifugal sand PumP Oil rig equipment 4

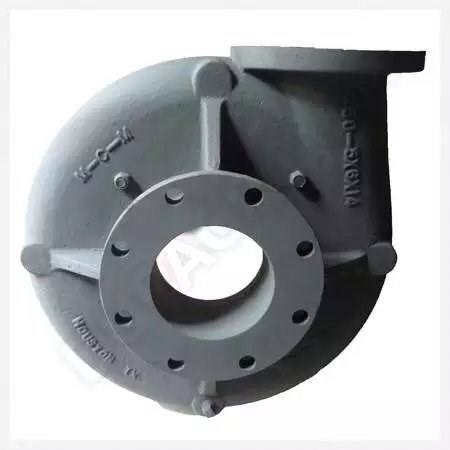

MCM 118 Centrifugal sand PumP Oil rig equipment 5

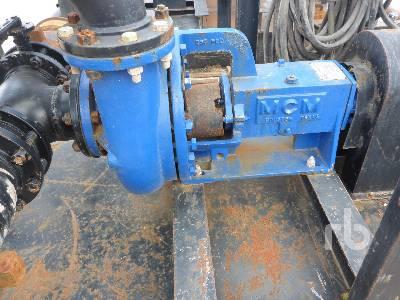

MCM 118 Centrifugal sand PumP Oil rig equipment 6
