Products Description
Model No.: 2500SB
Fuel: Diesel
Standard Or Nonstandard: Standard
Power Source: Electric
Theory: Centrifugal Pump
Usage: Oil
Brand Name: Yaou
Model Number: Sb2500 Best Centrifugal Sand Pump
Place Of Origin: Jiangsu, China
Horsepower: 10-100hp
Pressure: 10, Low Pressure
Cable Length: 18-40
Outlet Size: 25-80mm
Voltage: 380v
Power: 50hz, Electric
Packaging: standard packages
Productivity: 50
Transportation: Ocean,Land,Air
Place of Origin: CHINA
Supply Ability: 50
Certificate: CE
HS Code: 8413701010
Port: SHANGHAI
Payment Type: L/C,T/T,D/P,D/A
Incoterm: FOB,EXW,CIF,CFR
- Selling Units:
- Set/Sets
- Package Type:
- standard packages

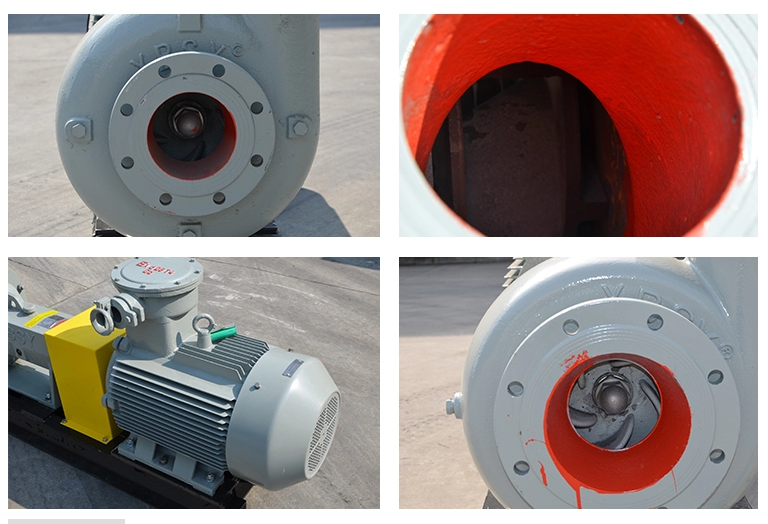

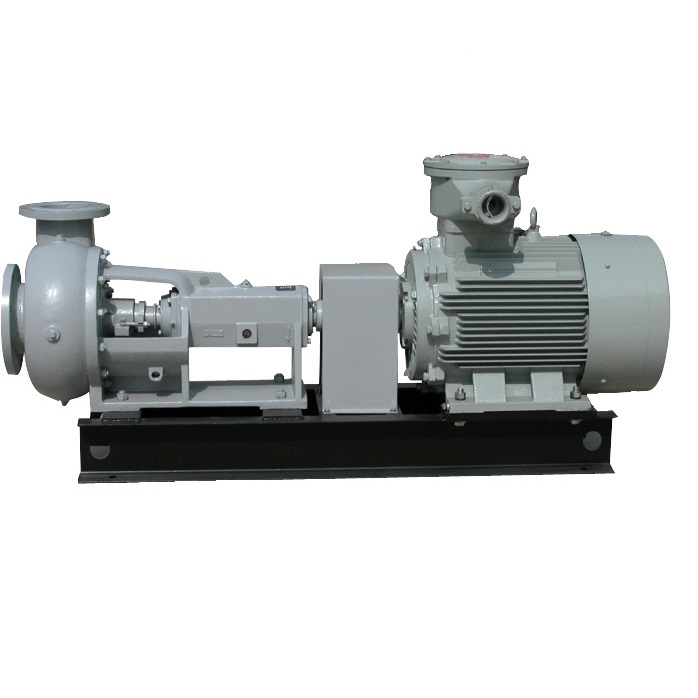

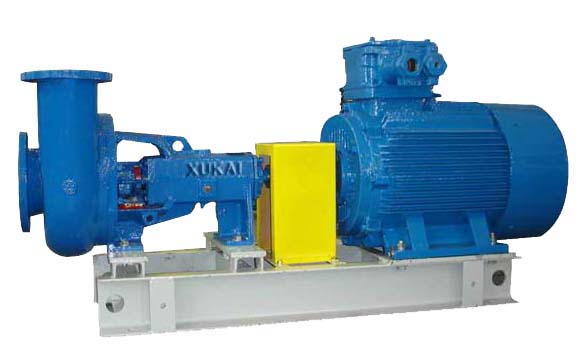

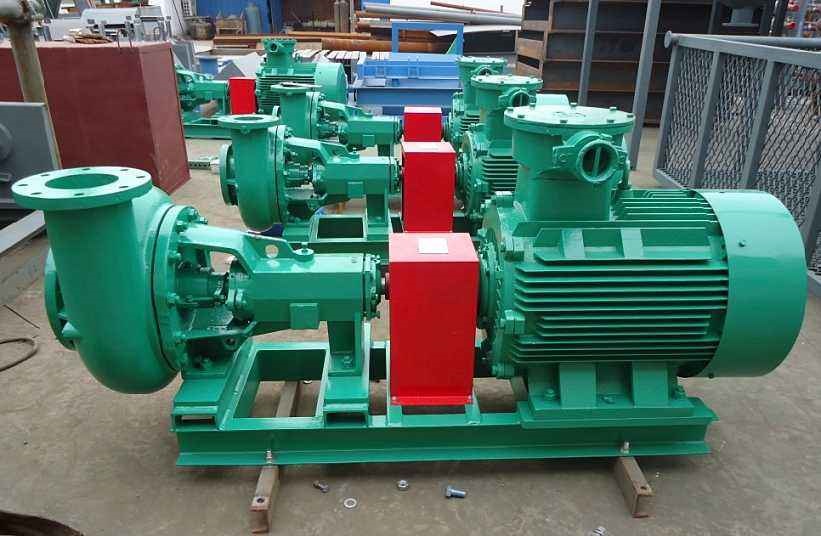

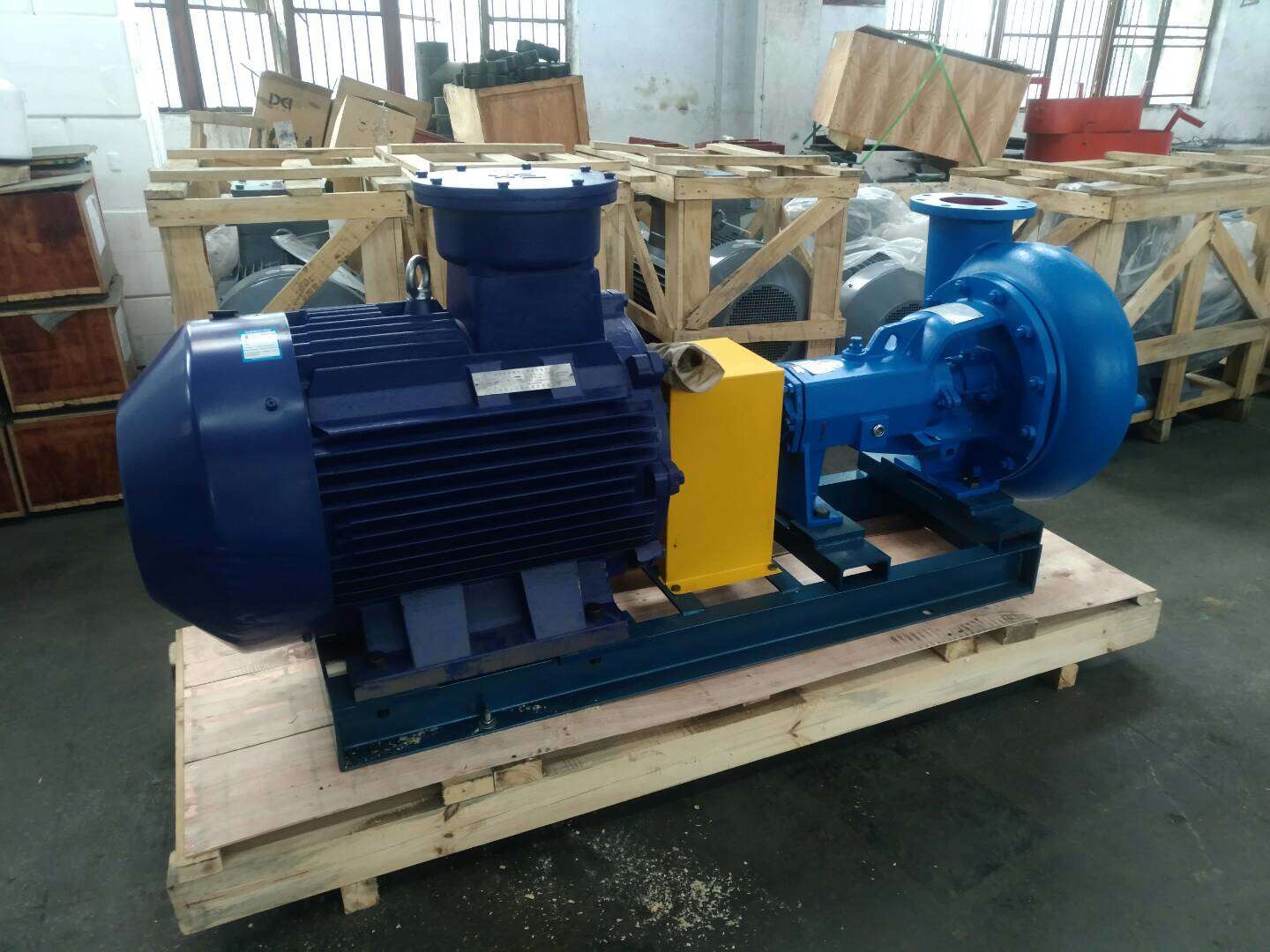

SB serial Sand Pump are supplementary pumps, newly designed and manufactured according to features of petroleum and natural gas drilling equipment. The pumps are applicable to deliver corrosive drilling fluid (with suspended particulates) or other liquid media under similar work condition, and are optional pumps for desander, desliter and mix hoppers as well as perfect perfusion pumps of mud pumps. We have more than 80 models of SB6x8, SB5X6, SB4X5, SB3X4, and SB2X3 with motors ramying from 4KW to 75KW. The pumps have two structures of direct connection and belt connection which are suitable for power grids of 50Hz and 60Hz. They also have metric and british systems and clockwise and anticlockwise directions.

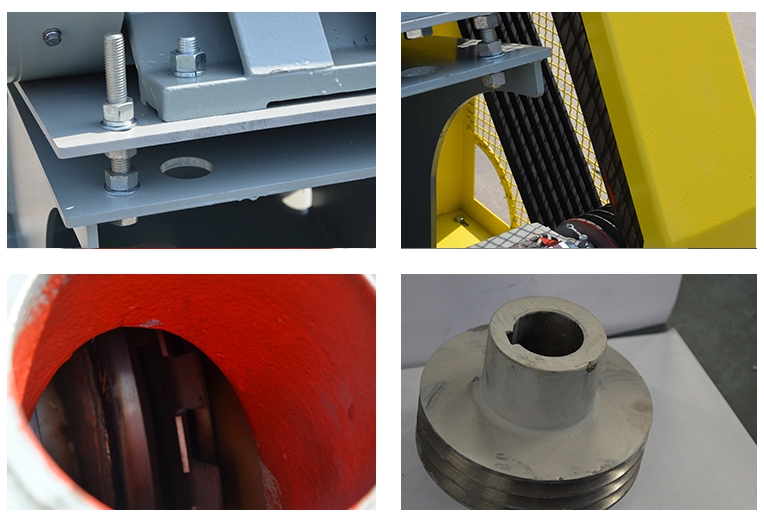

Features:
1. No leakage
Use combined seal rely mainly on mechanical seal while packing subsidiary. The mechanical seal is designed by our company with patent ZL200720079857.2.
2. High efficiency
Impeller and case have a streamlined design.
Long service life
The flow parts are made of high wearable cast iron.
3. No jam
The impeller has wide flow pass.
4. Beautiful appearance
The structure, which has certificate of design patent, is compact and beautiful.
|
Type
|
Capacity(m³/h)
|
Head(m)
|
Speed(rpm)
|
Efficiency(%)
|
Power(KW)
|
Weight(kg)
|
Dimension L*W*H (mm)
|
||
|
50Hz
|
60Hz
|
Brake power
|
Motor power
|
||||||
|
2500SB8*6-13
|
240
|
37
|
1480
|
1780
|
67
|
36.1
|
75
|
1210
|
1966*633*1024
|
|
2500SB8*6-12 1/2
|
200
|
36
|
1480
|
1780
|
66
|
29.7
|
55
|
1080
|
1906*623*964
|
|
2500SB8*6-12
|
200
|
33
|
1480
|
1780
|
64
|
28.1
|
45
|
910
|
1826*602*888
|
|
2500SB6*5-12 1/2
|
200
|
33
|
1480
|
1780
|
64
|
28.1
|
45
|
880
|
1796*527*888
|
|
2500SB6*5-12
|
180
|
31
|
1480
|
1780
|
61
|
24.9
|
37
|
830
|
1771*527*865
|
|
2500SB6*5-11 1/2
|
160
|
28
|
1470
|
1780
|
61
|
20
|
30
|
740
|
1736*527*844
|
|
2500SB6*5-11
|
140
|
22
|
1470
|
1780
|
61
|
13.8
|
22
|
620
|
1676*517*766
|
|
2500SB5*4-12 1/2
|
95
|
37
|
1480
|
1780
|
61
|
15.7
|
37
|
810
|
1737*532*865
|
|
2500SB5*4-12
|
90
|
33
|
1470
|
1780
|
60
|
13.5
|
30
|
735
|
1702*532*844
|
|
2500SB5*4-11 1/2
|
85
|
30
|
1470
|
1780
|
58
|
12
|
22
|
630
|
1642*512*766
|
|
2500SB4*3-12
|
85
|
30
|
1470
|
1780
|
60
|
11.6
|
30
|
710
|
1666*519*844
|
|
2500SB4*3-11 1/2
|
80
|
27
|
1470
|
1780
|
60
|
9.8
|
22
|
605
|
1606*496*766
|
|
2500SB4*3-11
|
75
|
23
|
1460
|
1760
|
58
|
8.1
|
15
|
520
|
1567*496*729
|
|
2500SB4*3-10
|
70
|
18
|
1460
|
1760
|
57
|
6
|
11
|
500
|
1527*496*729
|
|
2500SB3*2-11 1/2
|
60
|
31
|
1470
|
1780
|
57
|
8.9
|
30
|
700
|
1652*519*844
|
|
2500SB3*2-101/2
|
52
|
27
|
1460
|
1760
|
56
|
6.8
|
15
|
513
|
1553*483*729
|
|
2500SB3*2-10
|
50
|
25
|
1460
|
1760
|
56
|
6.1
|
11
|
493
|
1513*483*729
|
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Our company mainly deals in Hardware Tools , combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，The company provides various centrifugal pumps, chemical pumps, screw pumps , Booster Pumps , variable frequency constant pressure pumps, hydrochloric acid pumps, testing pumps, etc. Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.
Rugao Yaou Import & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. Our company also operates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
