Products Description
Model No.: 2500SB
Status: New
Warranty Period: 1.5 Years
Applicable Industry: Energy &Amp; Mining
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae, Uzbekistan, Russia, Mexico, Ukraine, Pakistan, India, Indonesia, Tajikistan, Bangladesh, Kazakhstan
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae, Uzbekistan
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Motor
Standard Or Nonstandard: Standard
Power Source: Electric
Fuel: Gasoline
Theory: Centrifugal Pump
Usage: Oil
Brand Name: Yaou
Model Number: 2500sb
Place Of Origin: Jiangsu, China
Horsepower: 20
Pressure: 250, High Pressure
Cable Length: 40
Outlet Size: 10-100
Voltage: 380v
Power: 7.5-110kw, Electric
Packaging: Packaging meet export requirements
Productivity: 10
Transportation: Ocean,Land,Air
Place of Origin: CHINA
Supply Ability: 10
Certificate: API
HS Code: 8413701010
Port: SHANGHAI
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
- Selling Units:
- Set/Sets
- Package Type:
- Packaging meet export requirements
Product Application

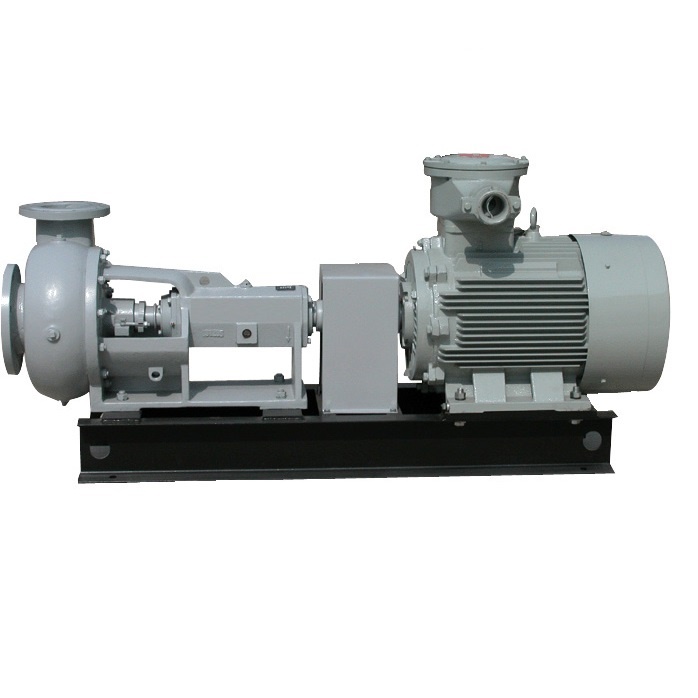

2500SB series Sand Pumps
2500SB series sand pumps are made as per the demands of American drilling companies,newly designed and manufactured according to features of petroleum and natural gas drilling equipment.With axial-suction structures and wear- resistant cast iron for flow-passing parts employed,such pumps suitable for delivering corrosive drilling liquid that contains suspended pellets and other similar liquids,and also the best supporting pumps for sand removers,mud removers and mixing funnel,and ideal pouring pumps for mud pumps as well.During design of their parameters,that supporting equipment can run under the best operating mode has been fully considered.As a result,these pumps have the advantages of high universality & exchangeability,little shaft leakage,high reliability,long service life and convenient maintenance.
The shaft seals of SB series sand pumps are lubricated with grease,and bearing are lubricated with machine oil.Since bearing covers at two ends of bearings are equipped with grease injectors,bearings can be lubricated with grease as well.
Both inlet flanges and outlet flanges of 2500SB series sand pumps are with standard dimensions, in metric system for domestic customers and in English system for foreign customers.
Our 2500SB series sand pumps have been used for land and offshore drilling platforms in more than 20 countries over the world,and the result shows that these pumps requires little maintenance expenses other than the normal replacement of sealing components..
Specifications of 2500SB series sand pumps.
|
Model
|
Flow
|
Head
(m)
|
Speed(rpm)
|
Efficiency
(%)
|
NPSH
(m)
|
Shaft Powe
(kW)
|
Electrical power
(kW)
|
|
2500SB10×8-14
|
450
|
29
|
1750
|
60
|
5
|
61
|
110
|
|
2500SB10×8-13
|
350
|
27
|
1750
|
60
|
5
|
43
|
90
|
|
2500SB10×8-12
|
300
|
25
|
1750
|
60
|
5
|
34
|
75
|
|
2500SB8×6-14
|
300
|
40
|
1750
|
67
|
4.6
|
48
|
90
|
|
2500SB8×6-13
|
240
|
37
|
1750
|
67
|
4.6
|
36
|
75
|
|
2500SB8×6-12
|
200
|
36
|
1750
|
66
|
4.6
|
31
|
55
|
|
2500SB8×6-11
|
200
|
33
|
1750
|
64
|
4.6
|
28
|
45
|
|
2500SB6×5-14
|
200
|
35
|
1750
|
64
|
4.6
|
30
|
55
|
|
2500SB6×5-13
|
200
|
33
|
1750
|
64
|
4.6
|
28
|
45
|
|
2500SB6×5-12
|
178
|
31
|
1750
|
61
|
4
|
25
|
37
|
|
2500SB6×5-11
|
160
|
28
|
1750
|
61
|
4
|
18
|
30
|
|
2500SB6×5-10
|
140
|
24
|
1750
|
61
|
4
|
16
|
22
|
|
2500SB5×4-14
|
100
|
40
|
1750
|
61
|
3.4
|
19
|
37
|
|
2500SB5×4-11
|
80
|
30
|
1750
|
60
|
3.4
|
12
|
22
|
|
2500SB4×3-12
|
85
|
30
|
1750
|
60
|
3
|
14
|
30
|
|
2500SB4×3-11
|
80
|
25
|
1750
|
58
|
3
|
9
|
15
|
|
2500SB4×3-10
|
80
|
23
|
1750
|
57
|
3
|
8.6
|
11
|
|
2500SB4×3-9
|
60
|
18
|
1750
|
57
|
3
|
5.2
|
7.5
|
|
2500SB3×2-13
|
80
|
30
|
1750
|
56
|
3
|
11
|
22
|
|
2500SB3×2-11
|
50
|
27
|
1750
|
56
|
3
|
6.6
|
11
|
|
2500SB3×2-10
|
50
|
22
|
1750
|
54
|
3
|
5.5
|
7.5
|
|
2500SB3×2-9
|
40
|
16
|
1750
|
54
|
3
|
3.2
|
5.5
|
2500SB series sand pumps have 22 specifications at present,which may also be derived more specifications as per the different requirements of the customers for performance,power and motor.Seals of 2500SB series sand pumps are of one typemechanical seal that is with a long lifeauxiliary seal is packing seal that can avoid occurrence of accidents.The practice demonstrates that seals of 2500SB series sand pumps are reliable,and convenient for maintenance……
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Our company mainly deals in Hardware Tools , combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，The company provides various centrifugal pumps, chemical pumps, screw pumps , Booster Pumps , variable frequency constant pressure pumps, hydrochloric acid pumps, testing pumps, etc. Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?
Rugao Yaou Import & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. Our company also operates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
