Frequency conversion constant pressure water supply pump

Description

Argument

Products Description

Overview

Product Attributes

Model No.: Constant pressure water pump

Brand: YAOU

Usage: Water

Power Source: Electric

Fuel: Electric

Brand Name: Yaou

Model Number: Qdln4

Horsepower: 0.5-40hp

Pressure: 10, High Pressure

Cable Length: 50m

Outlet Size: 25-65

Voltage: 220v

Power: 50hz, 0.55

Supply Ability & Additional Information

Packaging: wood package

Productivity: 10

Transportation: Ocean,Land,Air,Express

Place of Origin: CHINA

Supply Ability: 10

HS Code: 3922900000

Port: SHANGHAI

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: wood package

Picture Example:

Product Description

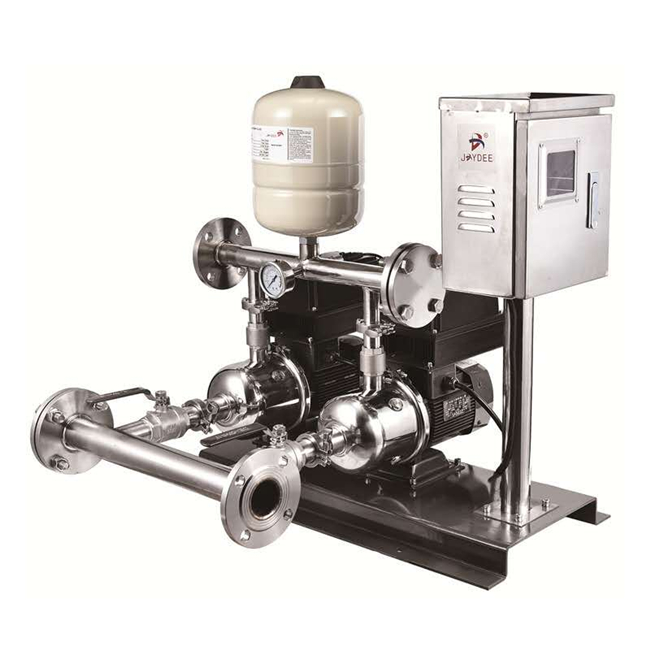

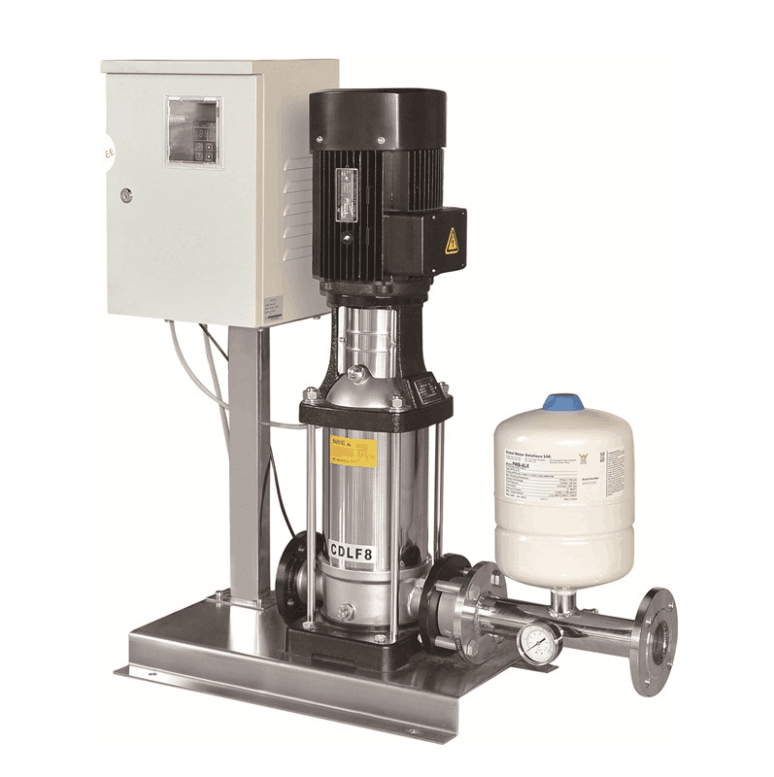

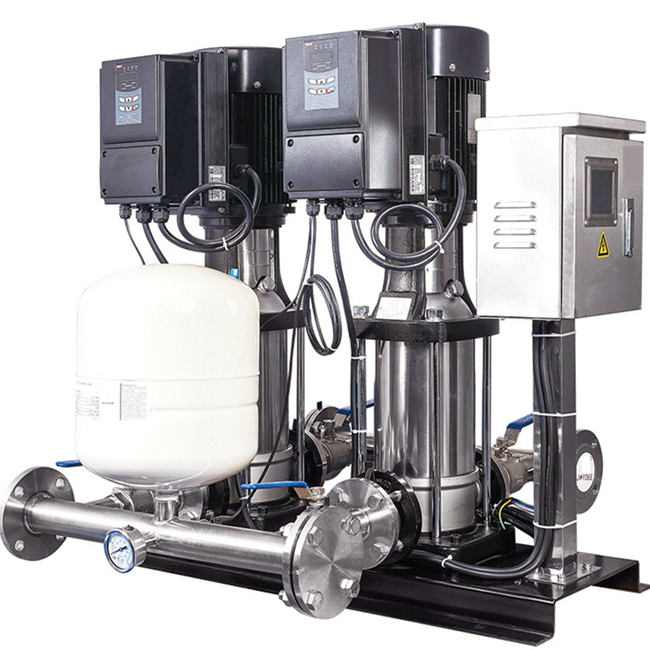

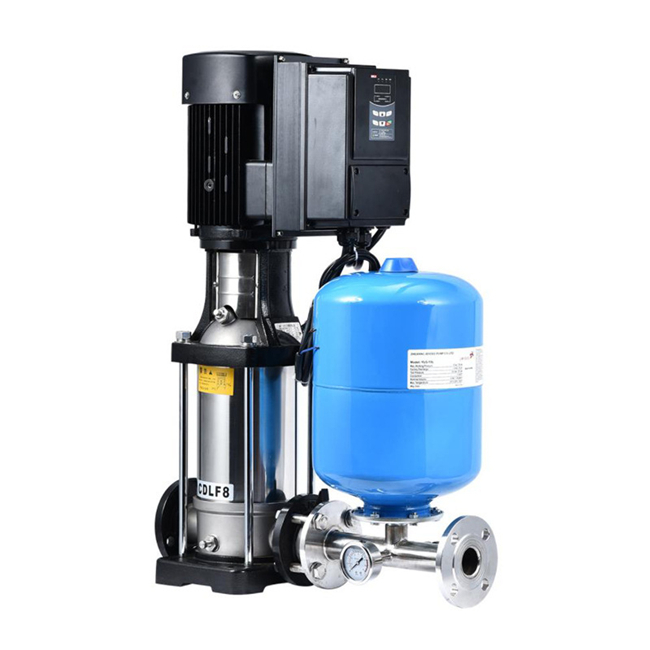

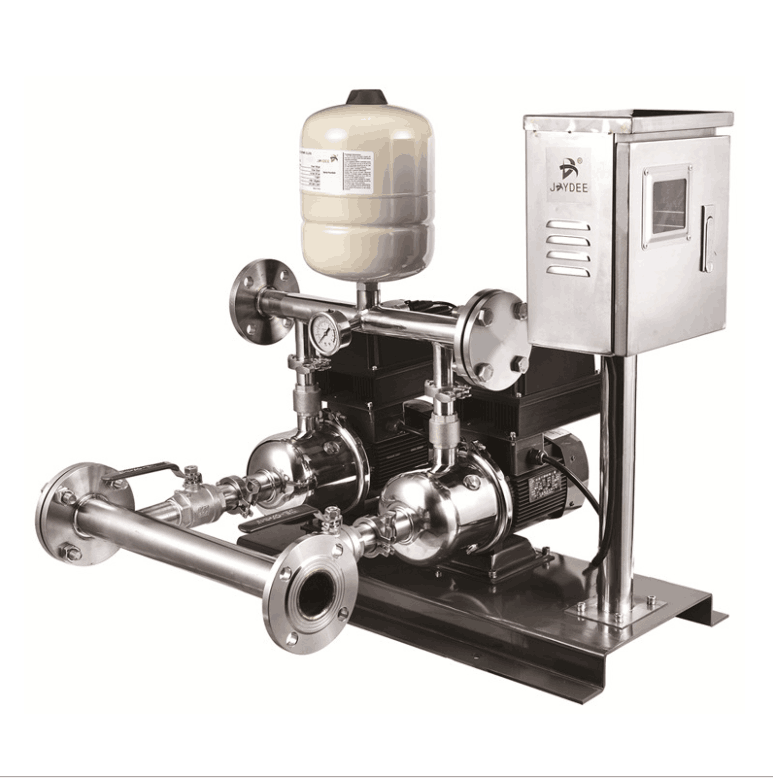

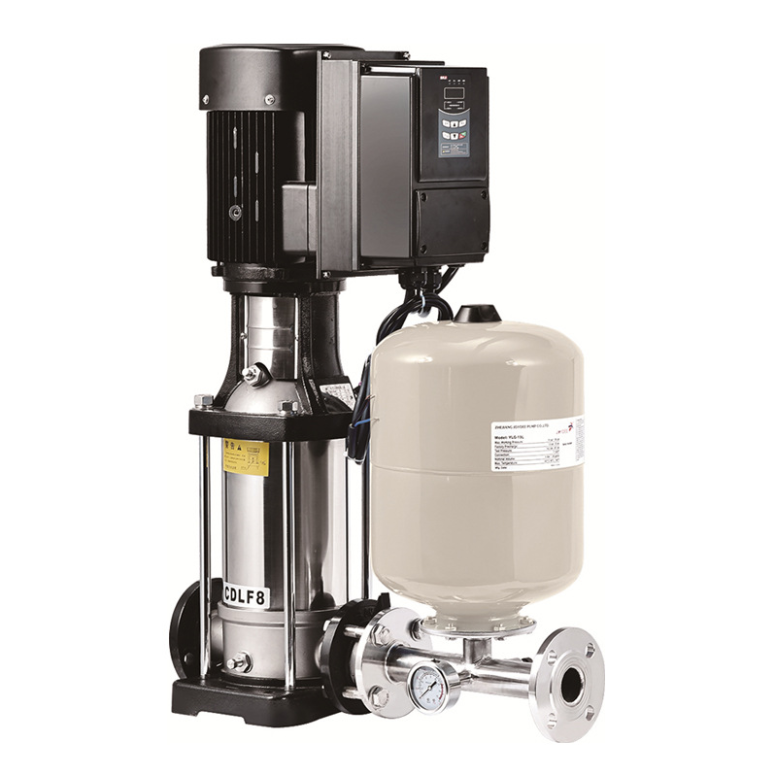

QDLN4 series Booster Pump is used for variable frequency Pump constant pressure system.When the water from the water pipe system enters the steady flow tank, the air in the tank is discharged from the vacuum eliminator. When the water is full, the vacuum eliminator closes automatically.When the pressure of the water supply system meets the water demand, the system directly supplies water to the water supply system by the bypass Check Valve .When the tap water system cannot meet the demand, the pressure signal of the system is fed back to the frequency conversion controller by the pressure sensor, and the water pump runs, and the speed is automatically adjusted according to the size of the water consumption to achieve constant pressure water supply. If the running water pump reaches the power frequency speed, another water pump will be started.When the water pump is supplying water, if the water quantity of the water pipe system is larger than the water pump flow, the system will supply water normally;If the amount of water is insufficient at the peak of water use, then the water in the steady flow tank can be used as a supply for the normal water use of the system. At this time, the water from the air eliminator enters the steady flow tank and the vacuum is destroyed to ensure that the system will not generate negative pressure. The vacuum is destroyed and the system returns to normal after the peak of water use.

MODEL	POWER	Q(m³/h)	H(m)	DN
QDLN4-2	0.55	4	16	32
QDLN4-3	0.75	4	24	32
QDLN4-4	1.1	4	32	32
QDLN4-5	1.1	4	40	32
QDLN4-6	1.5	4	48	32
QDLN4-7	1.5	4	56	32
QDLN4-8	1.5	4	64	32
QDLN4-9	2.2	4	72	32
QDLN4-10	2.2	4	80	32
QDLN4-11	2.2	4	88	32
QDLN4-12	2.2	4	96	32
QDLN4-13	3	4	104	32
QDLN4-14	3	4	112	32
QDLN4-15	3	4	120	32
QDLN4-16	3	4	128	32
QDLN4-17	4	4	136	32
QDLN4-18	4	4	144	32
QDLN4-19	4	4	152	32
QDLN4-20	4	4	160	32
QDLN4-21	4	4	168	32
QDLN4-22	4	4	176	32
QDLN4-26	5.5	4	208	32

Our company mainly deals in Hardware Tools , combined tools, electric tools, Special Tools For Petroleum, Metal Processing Machinery and petroleum drilling equipment. Diagonal Cutting Plier，Oil Drill Pipes，Drilling Tools，The company provides various centrifugal pumps, chemical pumps, screw pumps , Booster Pumps , variable frequency constant pressure pumps, hydrochloric acid pumps, testing pumps, etc. Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.

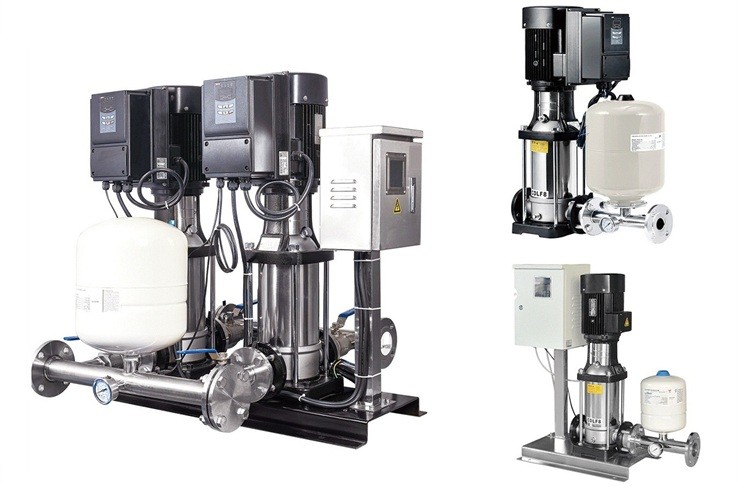

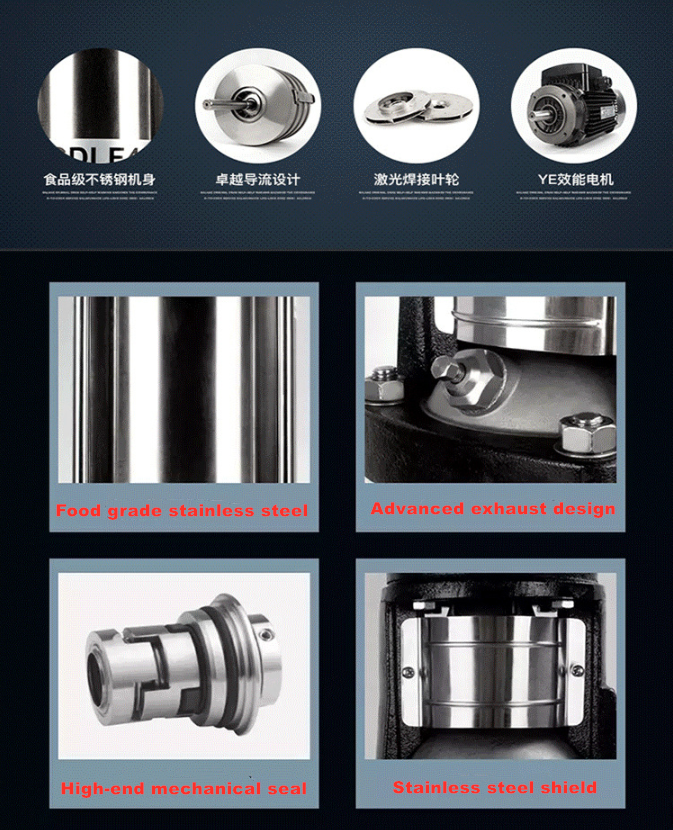

Detailed Images

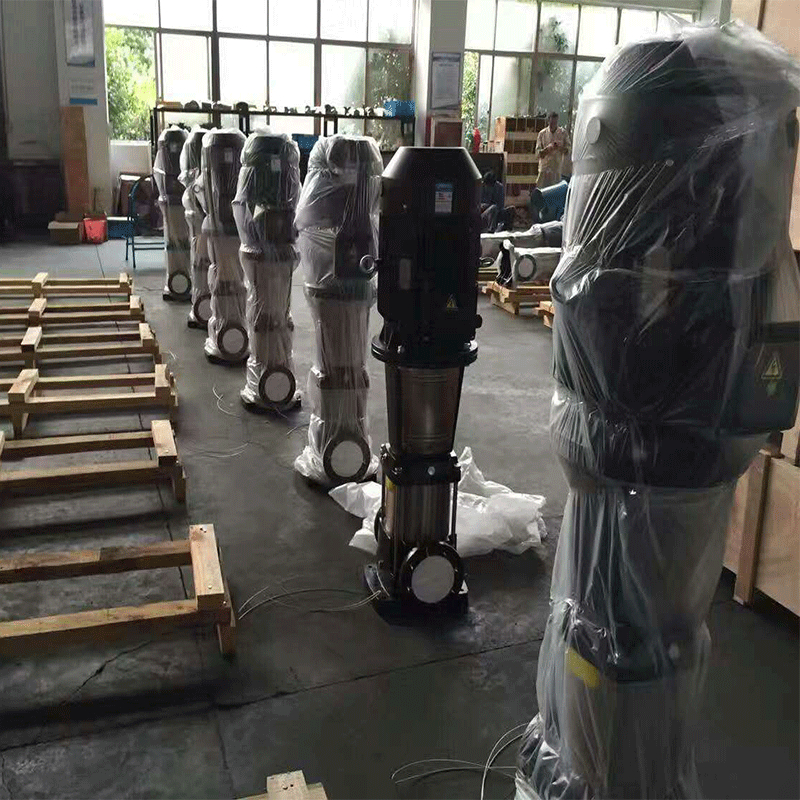

FACTORY

CERTIFICATIONS

FAQ

Q:Can you supply pump qualified with CE and ISO standard?
A:Yes, our pump compliant with ISO /CEstandard.
Q:How to customize pumps and mechanical seals ?
A:Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.
Q:How can I pay for my items? What is the payment you can provide?
A:Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight
Q:How long is warranty?
A:1 year for main construction warranty.
Q:How long is production lead time?
A:Normally 25 days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 7-15 days.
Q:What is the shipping terms you can provide?
A:Depnends on customer's requirements, we can provide different transportantin terms, such as EXW, FOB, CIF.
Q:Who is in charge of after-sales?
A:YAOU has professional after sales service team, we will follow up the client's comments and suggest them good solutions. Solve client's problems and keeping the clients profit.

Customs transportation

According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
